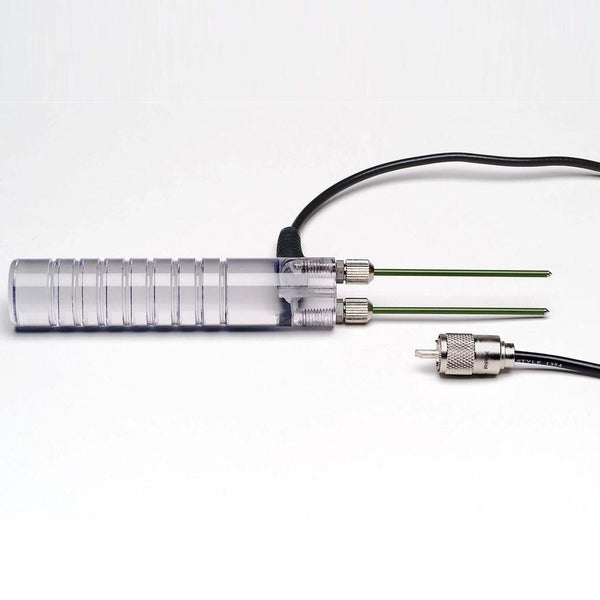

Coaxial cable assembly for standard Delmhorst electrodes

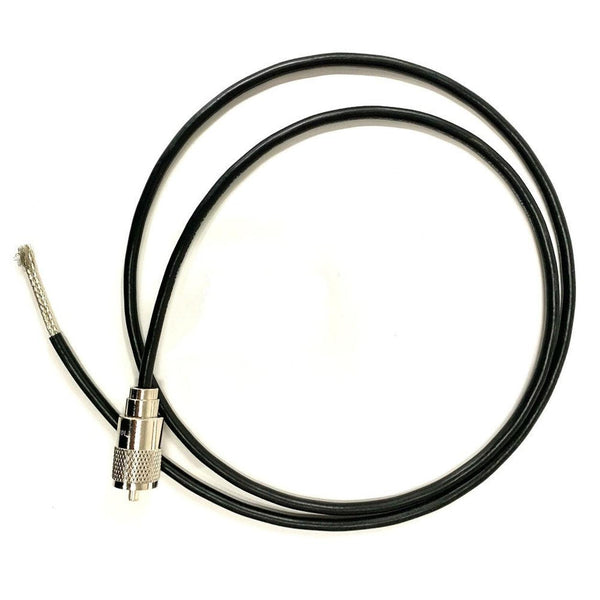

The 4 foot replacement lead between an electrode and the meter, supplied with its RF connector and strain relief fitted.
Fitment
- The 22-E and 22-ET electrodes
- The 2-E electrode
- The 21-E and 21-ET deep wall probes
- The 19-E and 19-E/STC blade electrodes
- All other standard Delmhorst electrodes
Important — not for the hammer electrodes
Delmhorst excludes three electrodes from this cable: the 26-ES, the 26-ED and the 1986 bale sensor. The two hammer electrodes take the 315CAB-0001 cable assembly instead.
Specifications
| Part number | 315CAB-0025 |
|---|---|
| Length | 4 feet (1.2 m) |
| Type | Coaxial cable assembly |
| Supplied with | RF connector and strain relief |
| Sold as | Each |
Frequently asked questions
How do I know the cable is the fault and not the meter?
Connect a different electrode. If the meter behaves, the cable or the electrode is at fault. Flexing the lead near the connector while watching the display will usually find a broken core.
Can I repair the existing cable?
The connector and strain relief are part of the assembly. A field repair rarely restores the shielding, and poor shielding on a resistance meter shows up as unstable readings.
Not sure which part suits your meter? Tell us the model and what you are testing and we will confirm the right one before you order.
