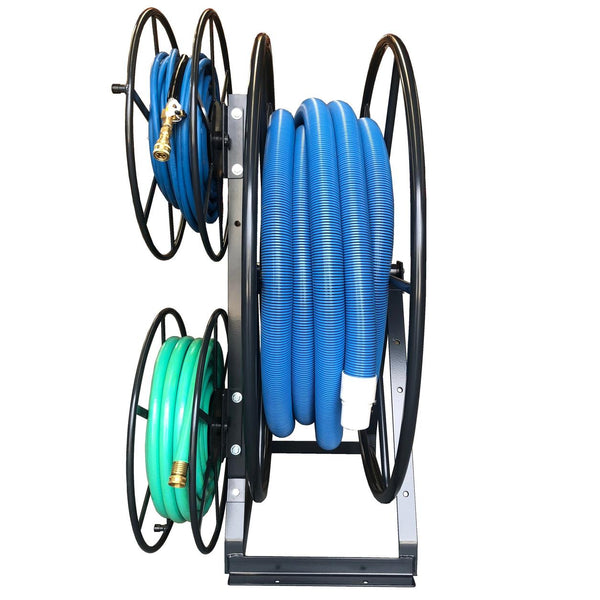

A heavy duty Stacker Bracket that turns your Space Saver vacuum hose reel into a triple hose reel. It is used for stacking solution reels to the vacuum hose reel: the bracket mounts on the vacuum reel and carries two Space Saver Solution Reels, so vacuum, solution and fresh water hose share one footprint in the van.
Powder coated charcoal to suit Hydramaster, Sapphire, Prochem and most other brands of truckmount.

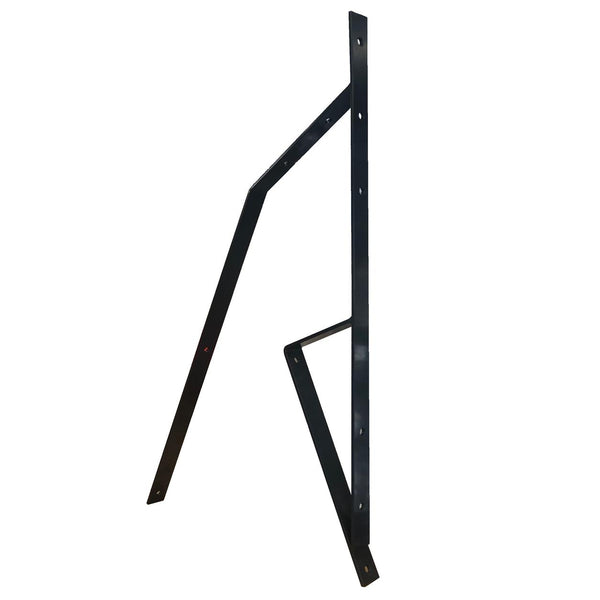

Heavy Duty Stacker Bracket
- Used for stacking solution reels to the vacuum hose reel
- Powder coated charcoal to suit Hydramaster, Sapphire, Prochem and most other brands of truckmount
- Pre-drilled holes
- Hose not included
- Stacker bracket and dual solution reels can be fitted to either side of the vacuum hose reel, or in various other combinations to adapt to your van layout
What Else You Need
The bracket is sold on its own. A working triple reel needs:
- The Space Saver Vacuum Hose Reel 60 Metres (AR23) to mount it on
- Two Space Saver Solution Reels (AR11), each holding 60 m of 6 mm (1/4") solution hose or fresh water hose
- Hose for each reel (not included)
- A live reel swivel on each solution reel, if you want to run solution or water while the hose is wound: AR34 (high pressure) or AR35 (low pressure)
If you are starting from scratch, the complete Space Saver Triple Solution Reel (AR23COMP) is the vacuum reel with this bracket and two Solution Reels already put together.
Specifications
| CCW SKU | AR31 |
|---|---|
| Purpose | Mounts two Space Saver Solution Reels on the Space Saver Vacuum Hose Reel |
| Finish | Powder coated charcoal |
| Mounting | Pre-drilled holes; either side of the vacuum hose reel |
| Reels and hose | Not included |
Frequently Asked Questions
Does the bracket include the solution reels?
No. It is the bracket only. The Solution Reels (AR11) are sold separately, or buy the complete Triple Solution Reel (AR23COMP).
Can it go on either side of the vacuum reel?
Yes. The stacker bracket and dual solution reels can be fitted to either side of the vacuum hose reel, or in other combinations to suit the van layout.
Will it fit a vacuum reel that is not a Space Saver?
It is made for the Space Saver Vacuum Hose Reel. We have not confirmed fit on other brands of reel; send us photos and measurements of your reel and we will check before you order.
What goes on the two reels?
Typically solution hose on one and fresh water hose on the other. Each Solution Reel holds 60 m of 6 mm (1/4") solution hose or 60 m of fresh water hose.
Related Products
- Space Saver Vacuum Hose Reel 60 Metres (AR23)
- Space Saver Solution Reel 60 Metres (AR11)
- Space Saver Triple Solution Reel 60 Metres (AR23COMP)
- High Pressure Solution Live Reel Swivel Assembly (AR34)
- Low-Pressure Live Reel Swivel Assembly (AR35)
Tell us your truckmount and van layout and we will help you plan the complete reel setup before you order.
