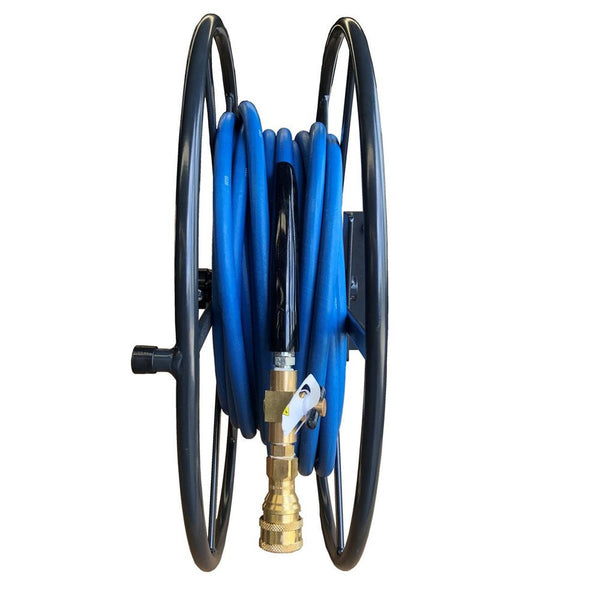

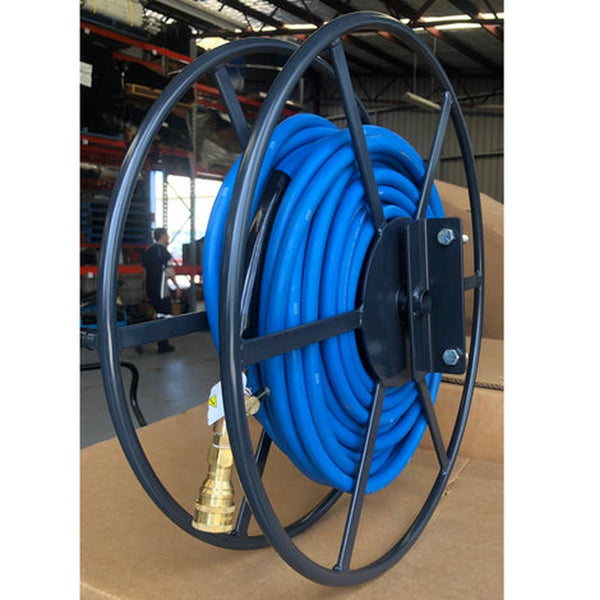

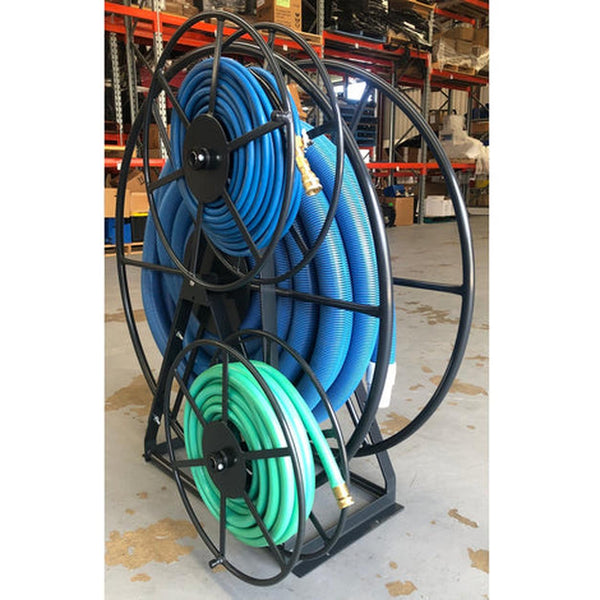

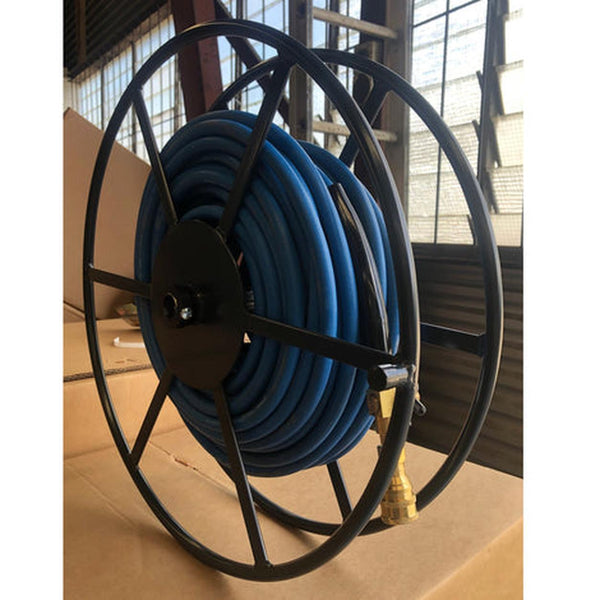

A heavy duty Space Saver solution hose reel that holds 60 metres of 6 mm (1/4") solution hose, or 60 metres of fresh water hose. It bolts to the side of the Space Saver Vacuum Hose Reel, or mounts in pairs with the Stacker Bracket, so solution, water and vacuum hose all live in one footprint in the van.
As supplied it is a storage reel. To run solution or water through the hose while it is still wound, fit one of the live reel swivel assemblies below.
Heavy Duty Space Saver Solution Hose Reel
- Will hold 60 metres of 6 mm (1/4") solution hose, or 60 metres of fresh water hose
- Powder coated charcoal to suit Hydramaster, Sapphire, Prochem and most other brands of truckmount
- Teflon bushing, no metal-on-metal
- Hose not included
- 14 cm wide x 50 cm long x 50 cm high (5.5" x 19.7" x 19.7")
- Fits to the bolt holes of the Space Saver Vacuum Hose Reel, or use the Stacker Bracket with dual solution reels
- Can be fitted to either side of the Space Saver Vacuum Hose Reel, or in various other combinations to adapt to your van layout
Storage Reel or Live Reel
A storage reel holds the hose and nothing else — you unwind the hose, then connect it directly to the machine or water supply. A live reel is plumbed through a swivel at the centre of the drum, so you pull off only the hose you need and leave the rest wound with water or solution already running through it.
This reel is a storage reel as standard. It converts to a live reel with either of these swivels, both of which fit it:
| Swivel | Rating | Best suited to |
|---|---|---|
| High Pressure Solution Live Reel Swivel Assembly (AR34) | 4,000 psi, 250 degrees F (approximately 121 degrees C) | High pressure solution hose |
| Low-Pressure Live Reel Swivel Assembly (AR35) | Low pressure (maximum not published by the manufacturer) | Fresh water / garden hose (primary); low pressure solution |
What Else You Need
- Hose — not included
- A live reel swivel, if you want to run the hose while wound — sold separately (see above)
- Plumbing from the swivel to your truckmount or water supply (leader hose and fittings) — not included with the reel or the swivel
- The Space Saver Vacuum Hose Reel to bolt it to, or the Stacker Bracket for a dual solution reel setup
Tell us your truckmount and van layout and we will quote the complete setup.
Specifications
| CCW SKU | AR11 |
| Hose capacity | 60 metres of 6 mm (1/4") solution hose, or 60 metres of fresh water hose |
| Dimensions | 14 cm W x 50 cm L x 50 cm H (5.5" x 19.7" x 19.7") |
| Finish | Powder coated charcoal |
| Bearing | Teflon bushing, no metal-on-metal |
| Reel type as supplied | Storage reel (no swivel) |
| Compatible swivels | AR34 (high pressure), AR35 (low pressure) |
| Mounting | Space Saver Vacuum Hose Reel bolt holes, or Stacker Bracket |
| Hose and plumbing | Not included |
Frequently Asked Questions
Can I run solution or water through the hose while it is still on the reel?
Not as supplied. It is a storage reel, so the hose comes off the reel and connects directly. Fit the AR34 or AR35 live reel swivel and plumb it to the machine, and you can run it partially or fully wound.
Which swivel do I need?
The AR34 for a high pressure solution hose. The AR35 for a fresh water / garden hose, which is its best use, or a low pressure solution line.
Is the plumbing to the truckmount included?
No. The leader hose and fittings from the swivel to your truckmount or water supply are extra.
Will it fit my van?
It fits either side of the Space Saver Vacuum Hose Reel, or stacks as a pair on the Stacker Bracket, and can be combined in other ways to suit the layout. Send us your van and machine details if you are unsure.
Does it suit my truckmount?
The charcoal finish suits Hydramaster, Sapphire, Prochem and most other brands of truckmount.
