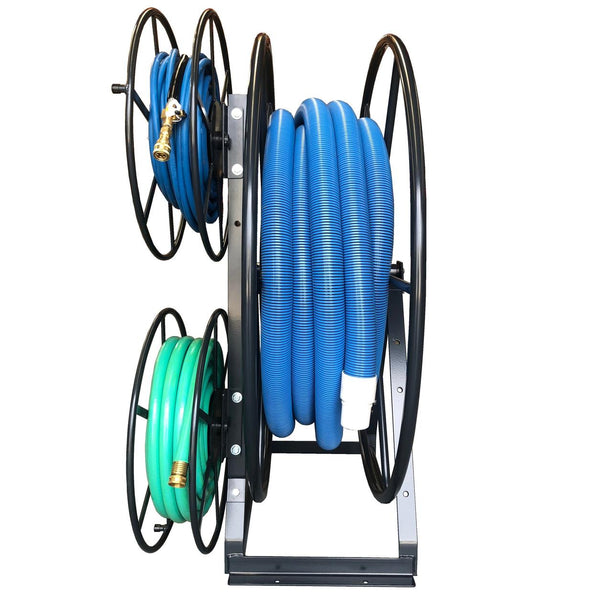

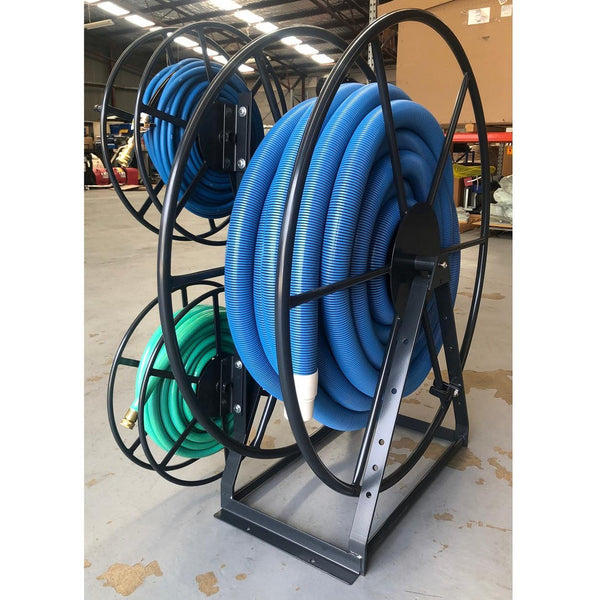

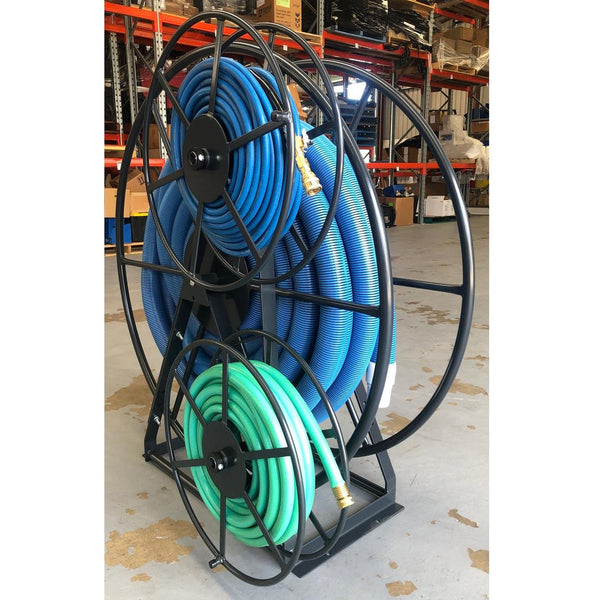

A heavy duty Space Saver triple hose reel that holds 60 metres of 51 mm (2") truckmount vacuum hose, 60 metres of solution hose and 60 metres of fresh water hose in one unit. It is the Space Saver Vacuum Hose Reel with a Stacker Bracket and dual Space Saver Solution Reels (AR11) fitted, so all three hoses sit in one footprint in the van.
As supplied, the solution and water reels are storage reels. To run solution or water through the hose while it is still wound, fit the live reel swivel assemblies below.
Heavy Duty Space Saver Triple Hose Reel
- Will hold 60 metres of 51 mm (2") truckmount vacuum hose, 60 metres of solution hose, and 60 metres of fresh water hose
- Powder coated charcoal to suit Hydramaster, Sapphire, Prochem and most other brands of truckmount

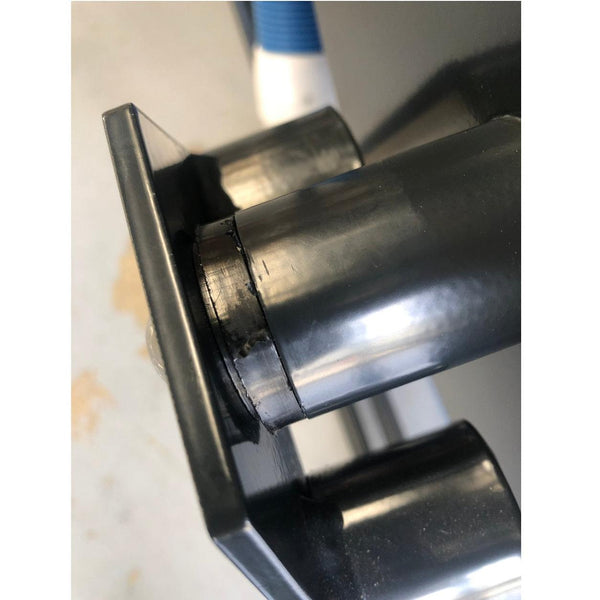

- Teflon bushing, no metal-on-metal

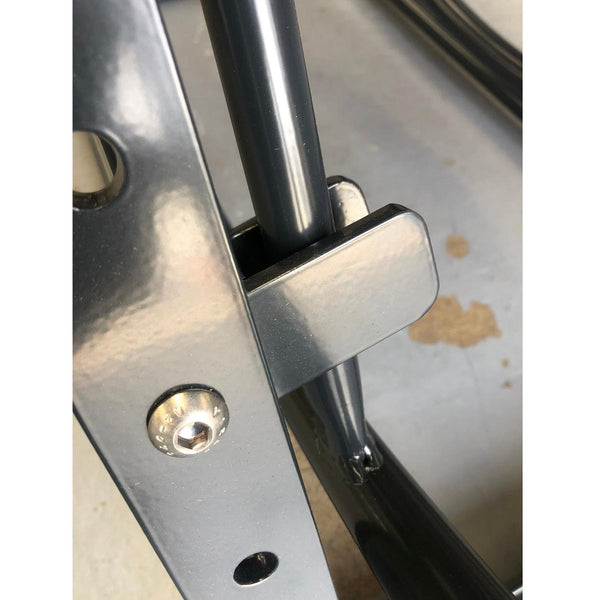

- Reel locking latch included
- Hose not included
- 56 cm wide (including brackets and solution reels as pictured) x 114 cm long x 120 cm high (22" x 44.9" x 47.2")
- Stacker bracket and dual solution reels can be fitted to either side, or in various other combinations to adapt to your van layout
- 75 metre, 90 metre and custom sizes available on request, custom pricing applies
Storage Reels or Live Reels
A storage reel holds the hose and nothing else — you unwind the hose, then connect it directly to the machine or water supply. A live reel is plumbed through a swivel at the centre of the drum, so you pull off only the hose you need and leave the rest wound with water or solution already running through it.
The two solution reels on this unit are storage reels as standard. Each converts to a live reel with a swivel, and both swivels fit:
| Swivel | Rating | Best suited to |
|---|---|---|
| High Pressure Solution Live Reel Swivel Assembly (AR34) | 4,000 psi, 250 degrees F (approximately 121 degrees C) | The solution hose reel |
| Low-Pressure Live Reel Swivel Assembly (AR35) | Low pressure (maximum not published by the manufacturer) | The fresh water / garden hose reel |
What Else You Need
- Hose — vacuum, solution and fresh water hose are not included
- Live reel swivels, if you want to run solution or water while wound — sold separately (see above)
- Plumbing from each swivel to your truckmount or water supply (leader hose and fittings) — not included with the reel or the swivels
Tell us your truckmount and van layout and we will quote the complete setup.
Specifications
| CCW SKU | AR23COMP |
| Vacuum hose capacity | 60 metres of 51 mm (2") truckmount vacuum hose |
| Solution hose capacity | 60 metres |
| Fresh water hose capacity | 60 metres |
| Dimensions | 56 cm W (including brackets and solution reels) x 114 cm L x 120 cm H (22" x 44.9" x 47.2") |
| Finish | Powder coated charcoal |
| Bearing | Teflon bushing, no metal-on-metal |
| Reel lock | Locking latch included |
| Solution and water reels as supplied | Storage reels (no swivels) |
| Compatible swivels | AR34 (high pressure), AR35 (low pressure) |
| Hose and plumbing | Not included |
| Larger sizes | 75 metre, 90 metre and custom on request (custom pricing) |
Frequently Asked Questions
Can I run solution or water through the hose while it is still on the reel?
Not as supplied. The solution and water reels are storage reels. Fit the AR34 to the solution reel and the AR35 to the water reel, plumb them to the machine, and you can run them partially or fully wound.
Is the plumbing to the truckmount included?
No. The leader hose and fittings from each swivel to your truckmount or water supply are extra.
Can the solution reels go on the other side?
Yes. The stacker bracket and dual solution reels can be fitted to either side, or in other combinations to suit the van layout.
Do you make longer reels?
75 metre, 90 metre and custom sizes are available on request, with custom pricing.
Does it suit my truckmount?
The charcoal finish suits Hydramaster, Sapphire, Prochem and most other brands of truckmount.
