- Protimeter BLD5375 SurveyMaster dual-function moisture meter with both pin and non-invasive measurement capabilities. NEW 2024 model with Bluetooth and AA Batteries
- Rugged construction, large backlit LCD display, wide range of accessory plugins
- Easy to use, allows rapid assessment of building moisture
- Non-invasive (RF) up to 19 mm (3/4") deep, 60-999 (relative)
- Pin Mode 6% to 99% WME, max needle depth 10.0mm
Product Information
The right moisture meter makes all the difference! And we've made even more improvements to enhance the Protimeter Surveymaster. This versatile pin and non-invasive moisture meter is ergonomically designed for easy, one-handed operation to measure moisture in buildings, and other related structures, both on and below the surface. Our 2024 model features a larger display for easy reading, automatic calibration checks every 50 power cycles, and user field calibration of the non-invasive mode. Additionally, the battery (2xAA) life is now 3 times longer! The SurveyMaster moisture meter has Bluetooth capabilities to connect to our Protimeter Connect app. This allows you to save and download readings with the time and date stamp. All Protimeter instruments have a two-year warranty.
Applications
- Measures moisture content in various materials using pin and non-invasive modes
- Wall moisture meter for measuring moisture content in wood, drywall, building materials, concrete, fibreglass
- Building surveys, Fire and flood reconstruction, concrete and wooden floors
- Measure moisture on and below the surface to diagnose moisture-related problems in buildings
- Compatible with the wide range of Protimeter plug-in attachments
- Easy to use one-handed operation and connects to the Protimeter Connect App
- For Building Inspectors, Insurance assessors, Builders, Quality Assurance
Specifications
| Item | Specification |
|---|---|
| Pin Measurement Range | 6% to 99% WME |
| Pin Measurement Depth | Up to 10mm (0.4") |
| Pinless Measurement Range | Non-invasive (RF) up to 19mm (3/4") deep 60 to 999 (relative) |
| Display | Digital Backlit LCD |
| Batteries | 2 x AA (included) |
| Warranty | 2 years on Instrument |
| Dimensions | 190mm x 70mm x 49mm |
| Gross Weight | 230gms |

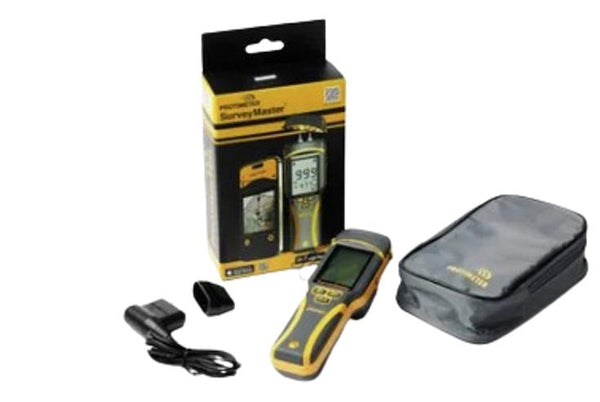

Kit includes:
- Surveymaster Instrument
- Carry pouch and Wrist Strap
- Heavy Duty External Probe
- Instructions
- Wood Calibration Chart
- Instructions
- 2 x AA Battery
- Two-year warranty
Other Product Variants:
| Protimeter Product | Aquant | Digital Mini | SurveyMaster | ReachMaster Pro | MMS3 | TimberMaster |
|---|---|---|---|---|---|---|
| Link | Aquant | Digital Mini | SurveyMaster | ReachMaster Pro | MMS3 | TimberMaster |
| Applications | Non-invasive mode | Pin mode | Pin & non-invasive modes | Non-invasive mode, telescopic handle: 114cm |
Pin & non-invasive mode, humidity, surface temperature |
Pin mode |
| Measuring Range | 60 to 999 (relative) | 6% to 99% WME | 6% to 99% WME 60 to 999 (relative) |
60 to 999 (relative) | 6% to 99% WME, 60 to 999 (relative), 0-90% RH, -20 to 80?C |
7.9% to 99% WME |
Calibration:
- Calibration Interval: We recommend that customers establish calibration intervals based on their own experience, work environment and quality procedures. Based on our product knowledge, data and customer feedback, a one-year calibration interval is a good starting point.
Accessories:
| Description | Order Code |
|---|---|
| HD Hammer (with 4 needles) | BLD5055 |
| Heavy Duty Plug-in Probe | BLD5060 |
| Deep Wall Probes 5" (127mm) | BLD5018 |
| Deep Wall Probes 14" (360mm) | BLD5019 |
| EIFS Probe | BLD5070 |
| Baseboard Probe | BLD5025 |
| Replacement Needles and Pins (set of 2) | Needle Kit |
| Mini Extension Probe | BLD5079 |
| Calibration Check Device | BLD5086 |
Warranty:
- Protimeter instruments come with a 2-year warranty. It does not include wear and tear of included accessories.
Product Features
- Rugged construction and large backlit display
- Pin moisture measurement
- Non-invasive measurement up to 20mm below the surface.
- Bluetooth Connectivity to download and save readings in the Protimeter Connect App
- Configure all functions including auto shut off, hold, backlight, buzzer, dry/at-risk/wet indicator
- In built-pin mode auto-calibration and field calibration for non-invasive mode
- Wide range of accessory plugins
Benefits
- Easy-to-use
- Allows rapid assessment of building moisture
- Instant readings in a wide range of building materials
- Non-invasive measurement not adversely affected by surface moisture
- Two meters in one
Protimeter Connect App
- This app is free on the Apple App Store and the Google Play Store. Once installed you will be able to connect to the instrument and store reading data along with photos.
- Individual job set-up
- Record readings from any function of the instrument
- View live readings
- Take and store photos of the meter with readings for each job
- Send readings via email
How it Works

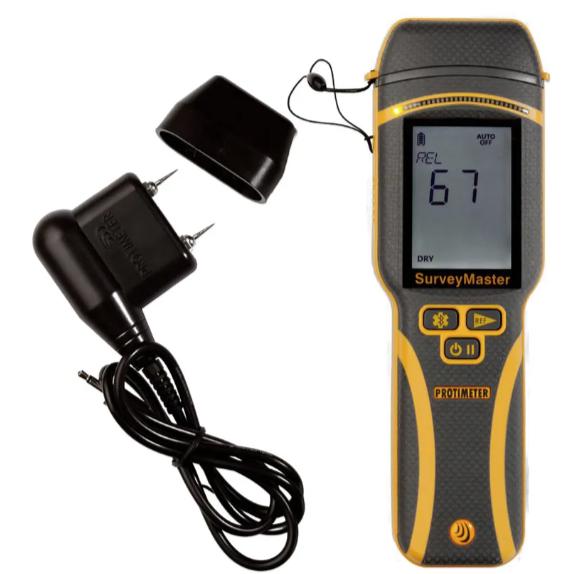

Search Mode Non-Invasive
The search mode is used to assess the moisture level beneath the surface of solid walls and floors independently of the surface conditions. The nominal depth of measurement is 19mm (3/4"); this depends on the density and other characteristics of the material being measured. When held against the surface, the instrument transmits a signal into the material. The relative moisture level is shown on the digital display and its moisture condition is shown on the accompanying scale of colour-coded lights. The measurement presentation helps the user to:
- Look for moisture behind wall and floor coverings such as tile and vinyl
- Assess, in relative terms, if the material is in dry, borderline or damp condition
- Map the extent of the problem numerically
- Non-invasive pinless radio frequency finds moisture at a depth where moisture is not always visible - up to 19mm (3/4") below the surface
This mode of measurement is not adversely affected by the presence of surface moisture
Applications: Shower pans, behind ceramic tile, fine finishes, water stains, tile and vinyl floor coverings, joists, around toilets, drywall, below-grade floors and walls, plaster, masonry, concrete and concrete block
Note: Metal additives in concrete or foil linings can create false positive readings

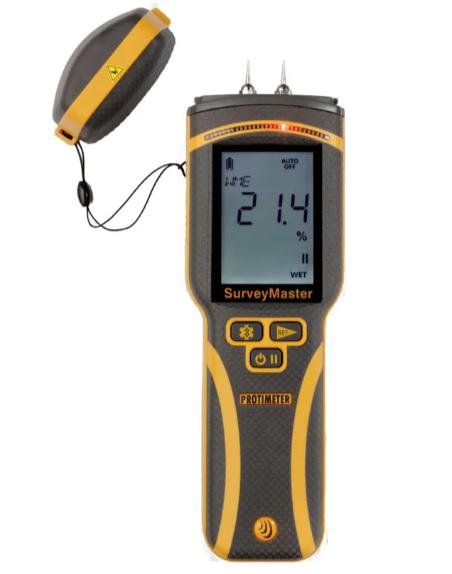

Measure Mode Pin-Type
This mode is used to measure the moisture level at the surface and incremental depths when used with the auxiliary probes. Measure mode readings are precise to the immediate area of contact of the electrodes. The actual moisture content of wood is shown on the digital display with the corresponding moisture condition shown on the accompanying scale of colour-coded lights. Wood Moisture Equivalent (WME) values are shown for other non-conductive, porous building materials.
- Pin-type probes measure moisture in wood and other building materials (use the provided wood calibration chart for more precise readings)
- Deep wall probes establish the presence of moisture in wall cavity insulation, sub and surface structures
- Other probes are available for EIFS, wood floors, baseboards and more
Applications: Wood and wood floors, subfloors, drywall, gyprock, concrete and concrete block, stucco, plaster, masonry and EIFS
