Protimeter Digital Mini (NEW 2024) BLD5775 (REPLACES BLD5702)

Regular price $674.53

FOR USE WITH:
Wood Drywall Building Materials

Tough, accurate, easy-to-use. Introducing our portable and precise pin-type moisture meter featuring both color LED indication
and a large digital display.

  • Protimeter BLD5775 Digital Mini moisture meter with pin type measurement capability and Bluetooth
  • Rugged construction, Bluetooth connectivity, large backlit LCD display, wide range of accessory plugins available for all applications
  • Easy to use, allows rapid assessment of building moisture and is ideal for measuring moisture in wood, drywall & other building materials
  • Pin Mode 7.9% to 99% WME, max needle depth 12.7mm
  • Connect via Bluetooth to the Protimeter Connect App to live stream data, set up jobs, record and email readings
The new Digital Mini boasts advanced pin moisture measurement technology and numerous enhancements, including a larger, more user-friendly display and an integrated calibration check with 3 times longer battery life.

It features a vivid colour arc display with green, yellow, and red markers indicating moisture risk levels. This meter is also backward compatible with Protimeter accessories like wall probes and hammer electrodes.

The Protimeter Digital Mini allows building professionals. such as flood damage restoration contractors, surveyors, home builders and architects? to assess building moisture levels during new build and refurbishing activities. It helps you easily identify the extent of the moisture penetration, diagnose the cause of the problem and monitor changes in moisture level. Plus, the ability to add optional attachments and a patent-pending reference mode enables you to compare your reading with a baseline measurement.

Applications


  • Measures moisture content in various materials using pin mode
  • Wall moisture meter for measuring moisture content in wood, drywall, building materials, concrete surface
  • Building surveys, Fire and flood reconstruction, concrete and wooden floors
  • Push the pins deep, or lightly touch the material for a surface reading
  • Diagnose moisture-related problems in buildings, inspections, moisture mapping
  • Compatible with the wide range of Protimeter plug-in attachments
  • Easy to use one-handed operation and connects to the Protimeter Connect App
  • For Building Inspectors, Insurance assessors, Builders, Quality Assurance, Restoration

  • Specifications


    Item Specification
    Pin Measurement Range 6% to 99% WME
    Pin Measurement Depth Up to 10mm (0.4"")
    Display Backlit LCD,
    60-segment green/yellow/red LED Colour Bar
    Batteries 2 x AA (included)
    Warranty 2 years on Instrument
    Dimensions 190mm x 70mm x 49mm
    Gross Weight 225gms

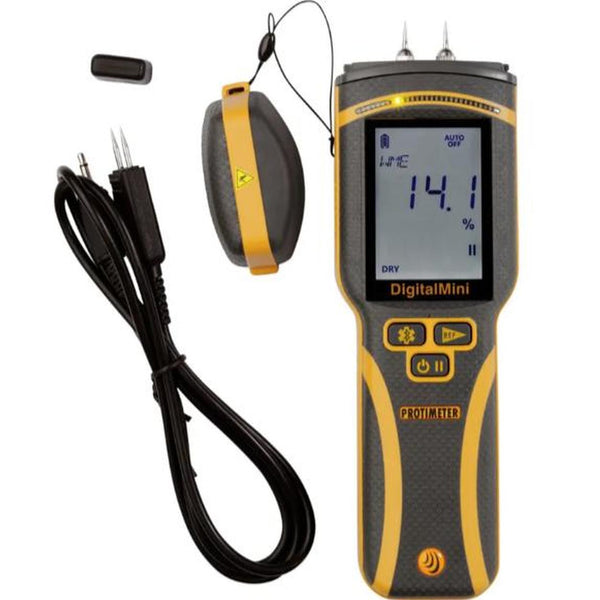

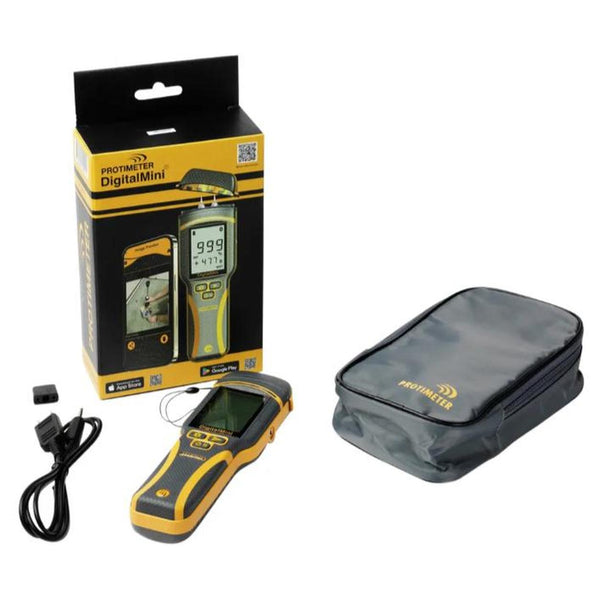

Kit includes:

  • Digital Mini Instrument
  • Carry pouch and Wrist Strap
  • BLD5079 Plug in Probe
  • 2 Spare Pins
  • Wood Calibration Chart
  • Instructions
  • 2 x AA Battery
  • Two-year warranty

Other Product Variants:

Protimeter Product Aquant Digital Mini SurveyMaster ReachMaster Pro MMS3 TimberMaster
Link Aquant Digital Mini SurveyMaster ReachMaster Pro MMS3 TimberMaster
Applications Non-invasive mode Pin mode Pin & non-invasive modes Non-invasive mode,
telescopic handle: 114cm
Pin & non-invasive mode,
humidity, surface temperature
Pin mode
Measuring Range 60 to 999 (relative) 6% to 99% WME 6% to 99% WME
60 to 1000 (relative)
60 to 999 (relative) 6% to 99% WME,
60 to 999 (relative),
0-90% RH, -20 to 80?C
7.9% to 99% WME


Calibration:

  • Calibration Interval: We recommend that customers establish calibration intervals based on their experience, work environment and quality procedures. Based on our product knowledge, data and customer feedback, a one-year calibration interval is a good starting point.

Training and Support:

  • We offer support by phone, email or video call to suit you.

Accessories:

Description Order Code
HD Hammer (with 4 needles) BLD5055
Heavy Duty Plug-in Probe BLD5060
Deep Wall Probes 5" (127mm) BLD5018
Deep Wall Probes 14" (360mm) BLD5019
EIFS Probe BLD5070
Baseboard Probe BLD5025
Replacement Needles and Pins  BLD0500
Mini Extension Probe BLD5079
Calibration Check Device BLD5086

Spare parts are also available - contact us for more information.

Warranty:

  • Protimeter instruments come with a 2-year warranty. It does not include wear and tear of included accessories.

Product Features:

  • Rugged construction
  • Large backlit display
  • Pin moisture measurement
  • Bluetooth Connectivity to download and save readings in the Protimeter Connect App
  • Wide range of accessory plugins

Benefits:

  • Easy-to-use
  • Allows rapid assessment of building moisture
  • Instant readings in a wide range of building materials

Protimeter Connect App:

  • This app is free on both the Apple App Store and the Google Play Store. Once the app is installed you will be able to connect to the instrument and store reading data along with photos.
  • Individual job set up
  • Record readings from any function of the instrument
  • View live readings
  • Take and store photos of the meter with readings for each job
  • Send readings via email

Apple App Store - Protimeter Connect

Google Play - Protimeter Connect

How it Works


Measure Mode Pin-Type

This mode diagnoses the extent of moisture intrusion for damage assessment and monitors the drying out of building structures. Measure mode readings are precise to the immediate area of contact of the electrodes.

  • Use built-in pind or plug in the heavy-duty moisture probe for measuring in hard-to-reach areas
  • Use accessories, such as hammer probes, to measure at depth
  • Deep wall pin-type probes establish the presence of moisture in wall cavity insulation, sub and surface structures
  • Other probes are available for EIFS, wood floors, baseboards and more
  • Measures moisture in wood and wood floors, subfloors, drywall, gyprock, concrete and concrete block, stucco, plaster, masonry and EIFS
