Kit contents
- Concrete Moisture Encounter X5 – CMEX5
- Moisture Encounter 5 – ME5
- Feedback Datalogger – DL-RHTX
- Heavy-duty pin-type wood probe
- Tramex Meters app for Android and iOS (phone not included)
Complete Moisture Meter Kit For Water Damage Restoration Of Buildings And Building Materials
WITH THE ACCOMPANYING BLUETOOTH APP
The Tramex WDIK is the complete kit for moisture content and relative humidity testing and monitoring of ambient conditions, concrete, wood, tiles, drywall, plaster and numerous building materials after water damage.
Featuring the Tramex ME5 for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing.
The Tramex CMEX5 digital concrete moisture meter allows for quantitative moisture content measurement using Gravimetric testing as a baseline, comparative testing of concrete and ambient conditions measurement.
The Tramex Feedback Datalogger gives live readings and time logs relative humidity, temperature and dew point in the environment and in materials and air spaces with the plug-in relative humidity probe.
An infrared surface thermometer gives surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer.
A heavy-duty pin-probe measures moisture content in wood or WME in other building materials.
The Tramex Water Damage Restoration Inspection Kit comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining.
Bluetooth connectivity to the Tramex Meters App allows for visualization of readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

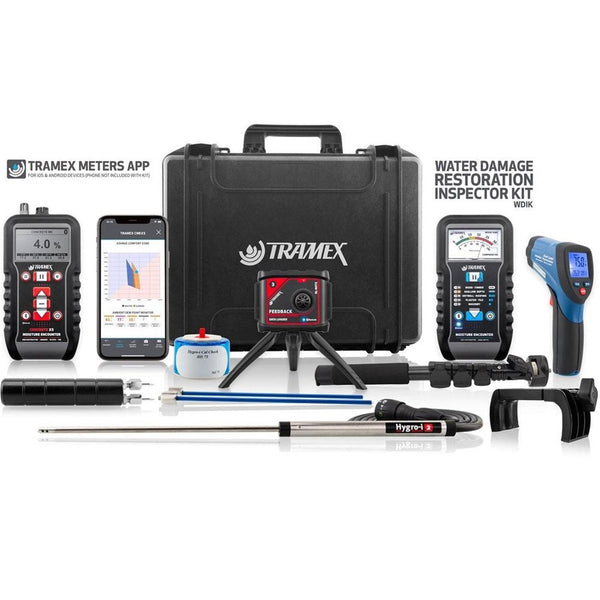

Kit Contents
- 1 x Concrete Moisture Encounter X5 - CMEX5.
- 1 x Moisture Encounter 5 - ME5.
- 1 x Feedback Datalogger - DL-RHTX.
- 1 x Heavy-duty pin-type wood probe - HH14TP30
- 1 x 127mm short narrow Relative Humidity probe - RHP-SNW-B
- 1 x 200mm (pack of 2) insulated pins for in-depth penetration - SP200
- 1 x Calibration Check Salts - SAL75
- 1 x Infrared Thermometer - IRT2
- 1 x Extension Handle - E5-HBS
- Free App available for Android and iOS (phone not included).

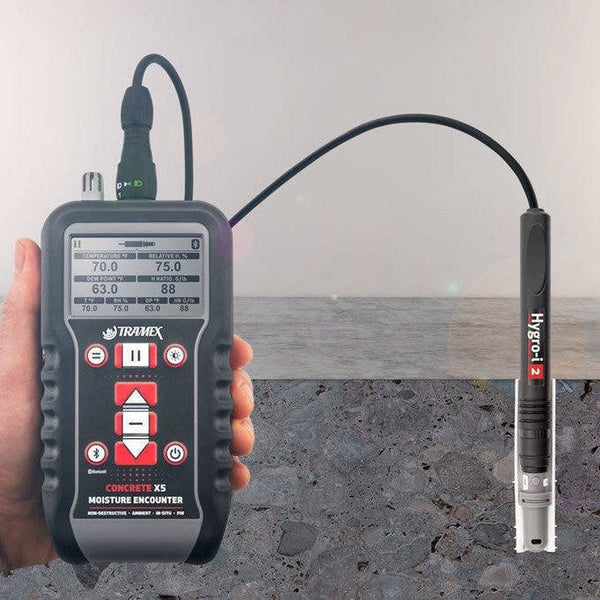

Concrete Moisture Encounter X5 - Cmex5 - Measuring Range:
- Depth of penetration in concrete: approx. 20mm
- Moisture content for Concrete: 0 → 6.9 %
- Comparative for Gypsum floor screed: 0 → 12
- CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
- Reference scale: 0 → 100
- Relative Humidity (including with Hygro-i2 ® probe): 0 → 99%
- Humidity accuracy: 0% to 99%RH +/- 2% @ 25°C
- Moisture content for wood with wood pin probes: 5 → 30 %

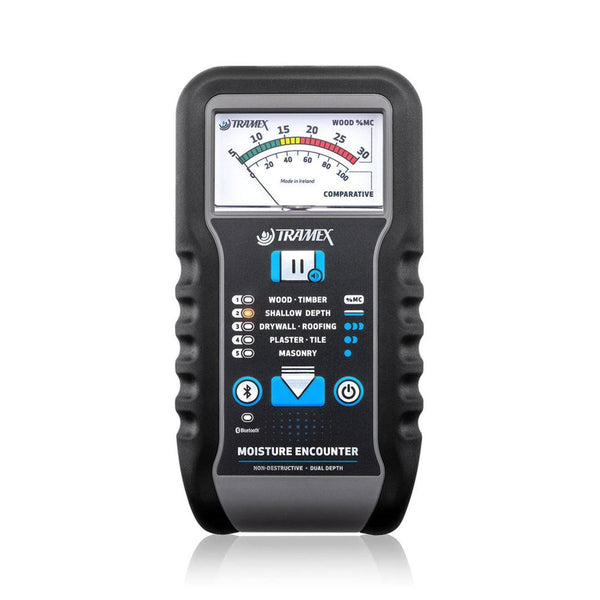

Moisture Encounter 5 - Me5 - Measuring Range:
- Wood Moisture Content: 5 to 30%
- Reference scale for building materials: 0 to 100
- Depth of penetration:
- Shallow signal: up to 10mm
- Deep signal: up to 30mm
Feedback Datalogger Dl-Rhtx Measuring Range:
- Memory: 100,000 data point entries (samples of Ambient RH and temperature; SurfaceTemperature)
- Logging Rate: Logger interval adjustable between 5 minutes and 1 hour
- Transmission Range: Up to 50m line-of-sight
- Bluetooth: BLE Bluetooth Low Energy 4.2 compliant, Bluetooth 5 advertising
Relative Humidity Sensor Specifications:
- Range: 0 to 100% RH
- Accuracy: ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 77ºF (25ºC))
- Resolution: 0.1% over the complete range
- Drift: <0.25%RH per year
Temperature Sensor Specifications:
- Range: -40ºF to 257ºF (-40ºC to 125ºC)
- Accuracy: ±0.1ºF Range 68ºF to 140ºF (±0.1 °C Range 20°C to 60°C)
- Sensor Protection: PTFE Film protects sensor opening from water & dust
- Drift: <0.04ºF (0.03ºC) per year
Infrared Thermometer Irt2
- Temperature range: -50 to 650 ºC
- Distance to Spot ratio: D:S = 12:1
- Display resolution: 0.1 ºF(0.1ºC) <1000 1ºC >1000
- Accuracy for targets: Assumes ambient operating temperature of 73 to 77ºF (23 to 25 ºC) -58ºF ~ 68ºF (-50 ~ 20ºC) ±4.5ºF(2.5ºC) 68ºF ~572ºF (20ºC ~300ºC) ±1.0% ±1.8ºF (1.0ºC) 572ºF ~ 1202ºF (300ºC ~650ºC) ±1.5%
- Repeatability: -58~68ºF (-50~20ºC) : ±2.3ºF(1.3ºC ) 68~1202ºF (20~650ºC): ±0.5% or ±0.9ºF (0.5ºC)
- Response time: 150ms
- Spectral response: 8~14um
- Emissivity: Digitally adjustable from 0.10 to 1.0
- Over range indication: LCD will show “----”
- Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
- Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
- Operating temp.: 0 to 50ºC
- Storage temp.: –10 to 60ºC
- Relative humidity: 10%~90%RH operating, <80%RH storage
- Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
- Safety: “ CE ” Comply with EMC
Specifications Of Kit:
- Size: 43.5cm x 36cm x 14cm
- Weight: 3.9kg
- Power: 5 x AA batteries, 1 x 9 volt PP3 battery
How the four water damage kits compare
| Kit | Meters included | Datalogger |
| WDTK – Tech Kit | ME5 + CME5, extension handle | No |
| WDIK – Inspector Kit | CMEX5 + ME5, pin probe | DL-RHTX |
| WDMK – Master Kit | CMEX5 + ME5, pin probe, 200 mm insulated pins | DL-RHTX |
| WDMK-X – Master Kit X | CMEX5 + MEX5, pin probe, 200 mm insulated pins | DL-RHTX |
The practical differences: the WDTK is the analogue pair with no logging. The WDIK adds the digital CMEX5 and a datalogger. The WDMK is the WDIK plus 200 mm insulated pins for reading deep into timber and insulation. The WDMK-X swaps the analogue ME5 for the digital MEX5, so every instrument in the kit records to the app and both meters carry hygrometers – that is the one to buy if reports matter more than price.
Documents
Frequently asked questions
Is buying the kit cheaper than the parts?
Generally yes, and it also removes the risk of ordering an accessory with the wrong connector. Every component is stocked individually if you would rather build up over time.
What connector do the accessories use?
The CMEX5, MEX5 and DL-RHTX all use the bayonet connector, so any probes added later must be the “B” suffix versions. The AP-F2170-B accessory pack is the matching in-situ RH kit.
Does the kit include Hygro-i2 RH probes for slab testing?
No. In-situ ASTM F2170 testing needs Hygro-i2 probes, an interface cable and hole liners – add the AP-F2170-B pack, or the individual parts.
Is a phone included?
No. The Tramex Meters app is a free download for iOS and Android and runs on your own device.
Contact Carpet Cleaners Warehouse if you want help choosing between the four water damage kits for the work you take on.
