Kit contents
- Moisture Encounter 5 – ME5
- Concrete Moisture Encounter 5 – CME5
- Extension handle
- Tramex Meters app for Android and iOS (phone not included)
Compact Moisture Meter Kit For Water Damage Restoration Of Buildings And Building Materials
With Accompanying Bluetooth App
The Tramex Wdtk Is A Compact Kit For Non-Destructive Testing Of Moisture Content And Conditions In Concrete, Wood, Drywall, Plaster And Numerous Building Materials.
The Tramex Cme5 Concrete Moisture Meter Allows For Instant, Precise Non-Destructive Quantitative Testing Of Concrete Using Gravimetric Testing As A Baseline And Comparative Testing Per Astm F2659.

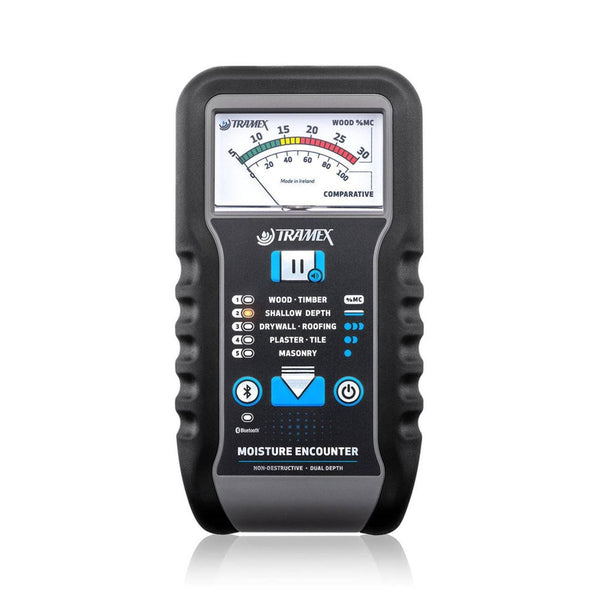

The Tramex Me5 Allows For Non-Destructive Quantitative Testing Of Wood And Comparative Testing Of Drywall, Plaster, Brick, Tiles, Resilient Flooring, Laminates And Roofing.
The Me5 Has A Dual-Depth Feature To Allow For The Elimination Of Substrate Influence On Readings.

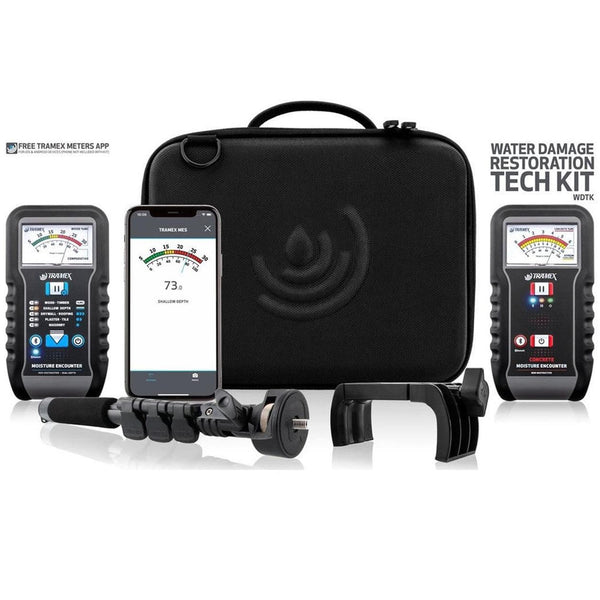

The Tramex Water Damage Restoration Tech Kit Comes With An Extension Handle In A Tramex Easy-Travel Case.

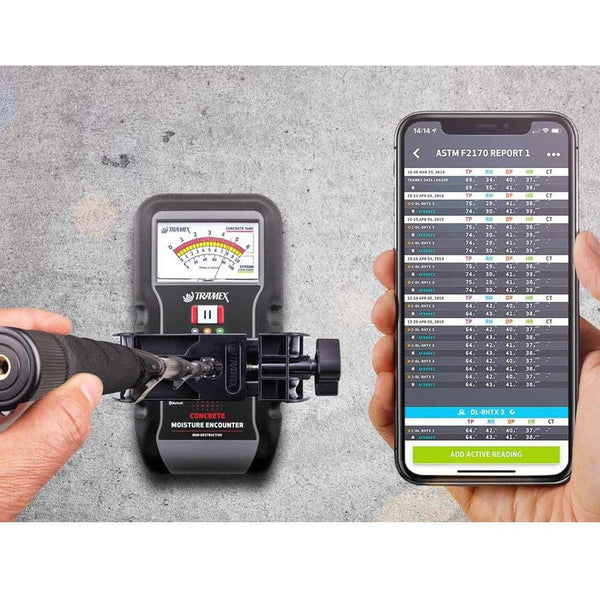

Bluetooth Connectivity To The Tramex Meters App Allows For Visualization Of Readings And Data Reporting To Mobile Devices, To Geotag Test Results, Create, Save And Share Photos, Reports And Charts, As Well As See Your Meter Screen On Your Phone When Extending To Hard To Reach Places.
Kit Contents
- 1 x Moisture Encounter 5 - ME5.
- 1 X Concrete Moisture Encounter 5 - Cme5.
- Free App Available For Android And Ios (Phone Not Included).
- 1 X Extension Handle (E5-Hbs)
Moisture Encounter 5 - Me5 - Measuring Range:
- Wood Moisture Content: 5 to 30%
- Reference scale for building materials: 0 to 100
- Depth Of Penetration:
- Shallow signal: up to 10mm
- Deep signal: up to 30mm
Concrete Moisture Encounter 5 - Cme5 - Measuring Range:
- Depth of penetration: approx. 20 mm
- Moisture Content for Concrete: 0 → 6%
- Comparative for Gypsum floor screed: 0 → 10
- Reference scale: 0 → 100
Specifications Of Kit:
- Size: 33.5cm x 24cm x 8cm
- Weight: 1.5kg
- Power: 4 x AA batteries
How the four water damage kits compare
| Kit | Meters included | Datalogger |
| WDTK – Tech Kit | ME5 + CME5, extension handle | No |
| WDIK – Inspector Kit | CMEX5 + ME5, pin probe | DL-RHTX |
| WDMK – Master Kit | CMEX5 + ME5, pin probe, 200 mm insulated pins | DL-RHTX |
| WDMK-X – Master Kit X | CMEX5 + MEX5, pin probe, 200 mm insulated pins | DL-RHTX |
The practical differences: the WDTK is the analogue pair with no logging. The WDIK adds the digital CMEX5 and a datalogger. The WDMK is the WDIK plus 200 mm insulated pins for reading deep into timber and insulation. The WDMK-X swaps the analogue ME5 for the digital MEX5, so every instrument in the kit records to the app and both meters carry hygrometers – that is the one to buy if reports matter more than price.
Documents
Frequently asked questions
Is buying the kit cheaper than the parts?
Generally yes, and it also removes the risk of ordering an accessory with the wrong connector. Every component is stocked individually if you would rather build up over time.
What connector do the accessories use?
The CMEX5, MEX5 and DL-RHTX all use the bayonet connector, so any probes added later must be the “B” suffix versions. The AP-F2170-B accessory pack is the matching in-situ RH kit.
Does the kit include Hygro-i2 RH probes for slab testing?
No. In-situ ASTM F2170 testing needs Hygro-i2 probes, an interface cable and hole liners – add the AP-F2170-B pack, or the individual parts.
Is a phone included?
No. The Tramex Meters app is a free download for iOS and Android and runs on your own device.
Contact Carpet Cleaners Warehouse if you want help choosing between the four water damage kits for the work you take on.
