Tramex Roofing Inspector Kit - Rik
Non Destructive Flat Roof Scanner For Leak Detection, Tracing And Moisture Measuring And Surveying
Kit contents
- Concrete Moisture Encounter X5 – CMEX5
- RWS Roof and Wall Scanner
- Hand held electrode with 200 mm insulated pins
- Tramex Meters app for Android and iOS (phone not included)
With Accompanying Bluetooth App

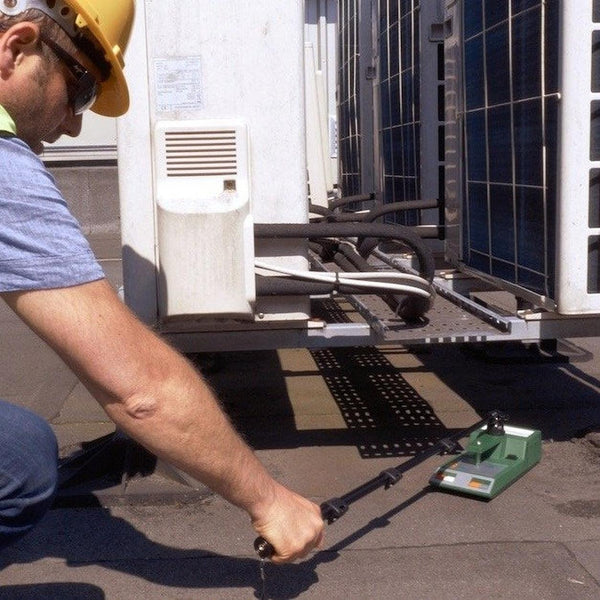

The Tramex RIK allows for point-of-contact, non-destructive moisture testing in roofing waterproofing systems up to approximately 10cm (4") in depth with the RWS Roof & Wall Scanner.
The kit also allows for non-destructive measurement of moisture conditions in concrete decks and pin readings in wood decks and roofing materials, relative humidity readings, and ambient and dew point conditions using the Tramex CMEX5 digital moisture meter and probes.
An infrared surface thermometer gives surface temperature.
The Tramex Roofing Inspection Kit comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining.
Bluetooth connectivity to the Tramex Meters App allows for visualization of Tramex CMEX5 readings and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your CMEX5 meter screen on your phone when extending to hard to reach places.

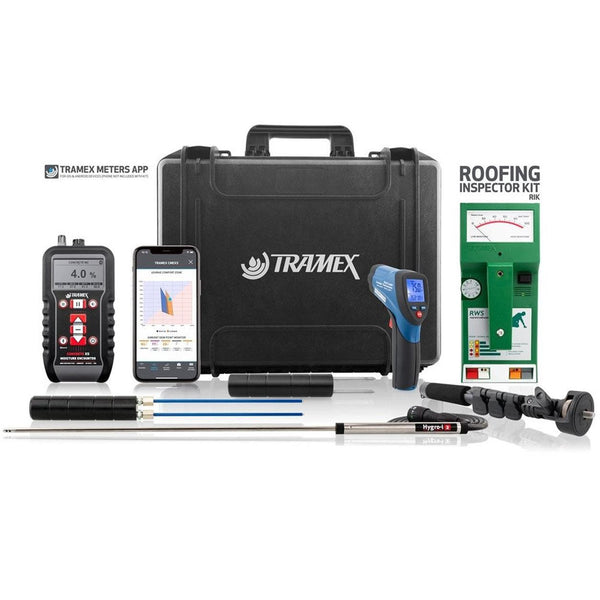

Kit Contents
- 1 x Concrete Moisture Encounter X5 - CMEX5.
- 1 x Roof and Wall Scanner - RWS
- 1 x Hand held electrode with 200mm insulated pins - HH14SP200B
- 1 x 260mm narrow RH probe. RHP-NWB
- 1 x Hole punch - HPW
- 1 x Infrared Thermometer - IRT2
- 1 x Extension Handle (for RWS).
- 1 x Hard shell Carry Case - MAXRIK
- App available for Android and iOS (phone not included).

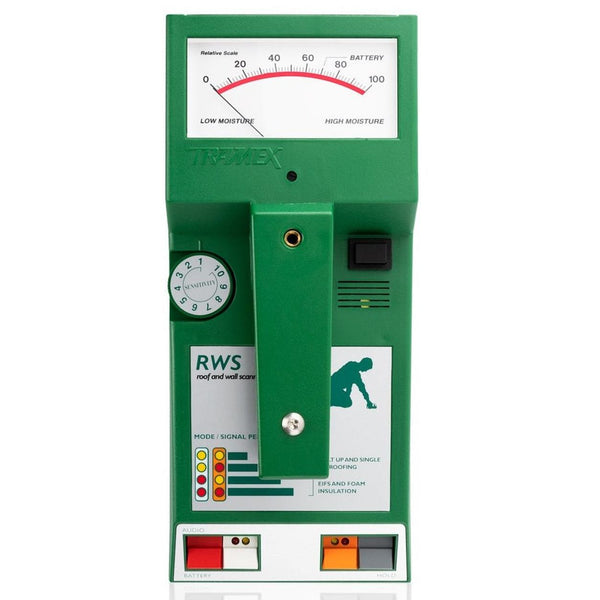

Roof And Wall Scanner - Rws Measuring Range:
- Depth of penetration: 100mm
-
Sensitivity: Four Ranges:
- Roofing Mode with high and low sensitivity.
- EIFS / Foam Roof Insulation Mode with high and low sensitivity.

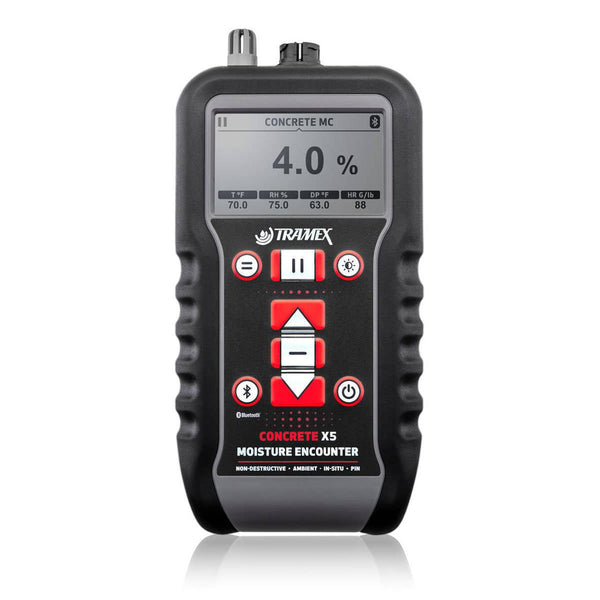

Concrete Moisture Encounter X5 - Cmex5 - Measuring Range:
- Depth of penetration in concrete: approx. 20mm (¾")
- Moisture content for Concrete: 0 → 6.9 %
- Comparative for Gypsum floor screed: 0 → 12
- CM Equiv Anhydrite/Concrete: 0→2.7 / 0→4.3
- Reference scale: 0 → 100

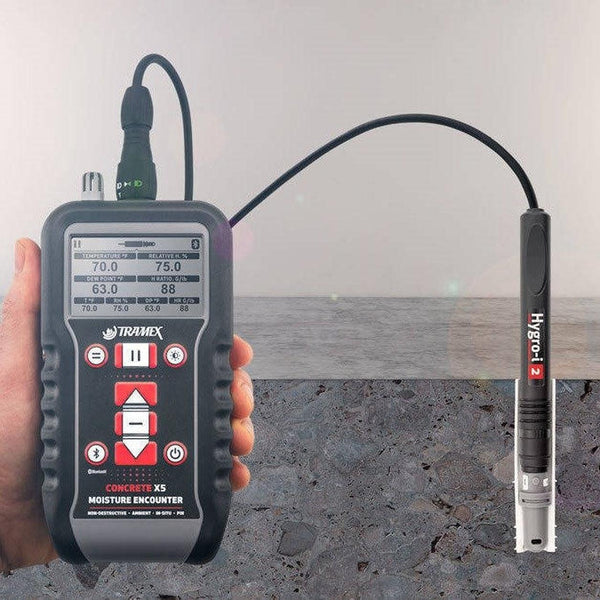

- Relative Humidity (with optional Hygro-i2® probe): 0 → 99%
- Humidity accuracy: 0% to 99%RH +/- 2% @ 25°C/77°F
- Moisture content for wood (with optional wood pin probes): 5 → 30 %

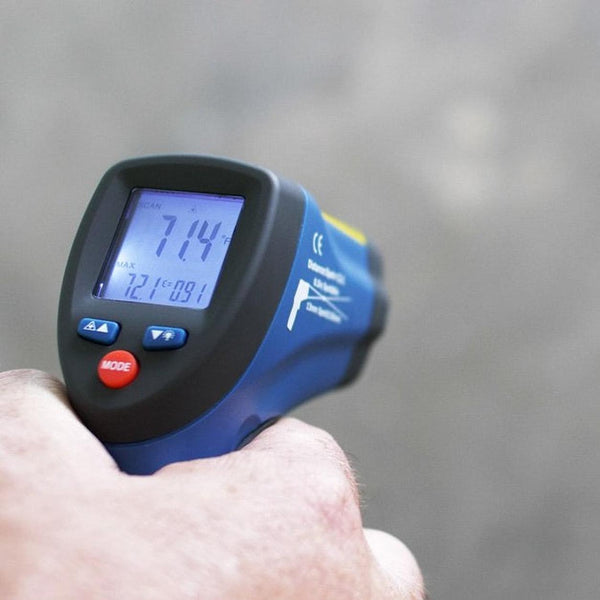

Infrared Thermometer Irt2
- Temperature range: -50 to 650 ºC (-58ºF ~ 1202ºF)
- Distance to Spot ratio: D:S = 12:1
- Display resolution: 0.1 ºC(0.1ºF) <1000 1ºC >1000
- Accuracy for targets: Assumes ambient operating temperature of 23 to 25 ºC (73 to 77ºF) -50 ~ 20ºC (-58ºF ~ 68ºF) ±2.5ºC(4.5ºF) 20ºC ~300ºC (68ºF ~572ºF) ±1.0% ±1.0ºC (1.8ºF) 300ºC ~650ºC (572ºF ~ 1202ºF) ±1.5%
- Repeatability: -50~20ºC (-58~68ºF) : ±1.3ºC (2.3ºF) 20~650ºC (68~1202ºF): ±0.5% or ±0.5ºC (0.9ºF)
- Response time: 150ms
- Spectral response:8~14um
- Emissivity: Digitally adjustable from 0.10 to 1.0
- Over range indication: LCD will show “----”
- Polarity: Automatic (no indication for positive polarity); Minus (-) sign for negative polarity
- Diode laser output: <1mW,Wavelength 630~670nm, Class 2 laser product
- Operating temp.: 0 to 50ºC(32 to 122ºF)
- Storage temp.: –10 to 60ºC (14 to 140ºF)
- Relative humidity: 10%~90%RH operating, <80%RH storage
- Power supply: 9V battery, NEDA 1604A or IEC 6LR61, or equivalent
- Safety: "CE" Comply with EMC
Specifications Of Kit:
- Size: 487mm x 380mm x 145mm
- Weight: 4.51kg
- Power: 2 x 9 volt PP3 Batteries, 2 x AALR6 ALKALINE (Included)
Roofing kits compared
| Kit | Contents |
| RIK – Inspector Kit | CMEX5 + RWS, hand held electrode with 200 mm insulated pins |
| RMK – Master Kit | DEC Scanner + RWS with telescopic handle + CMEX5 |
The difference is the DEC Scanner. The RIK is a handheld pairing for inspection and detail work. The RMK adds the large-format DS2, which is what makes surveying an entire commercial flat roof in a day practical. If your work is single-building inspections, the RIK is enough; if you tender on roof surveys by area, the RMK pays for itself in time.
Documents
Frequently asked questions
Will the RWS read every roof type?
No. Impedance scanning does not work through conductive materials – some EPDM, butyl rubber and other conductive membranes, and hard coat stucco or wire mesh reinforced finishes. Check the membrane before relying on it.
Is a phone included?
No. The Tramex Meters app is a free download for iOS and Android and runs on your own device.
Can I buy the components separately?
Yes – every instrument in the kit is stocked individually. The kit is generally better value and removes the risk of ordering an accessory with the wrong connector.
Contact Carpet Cleaners Warehouse if you want help choosing between these kits for the work you take on.
