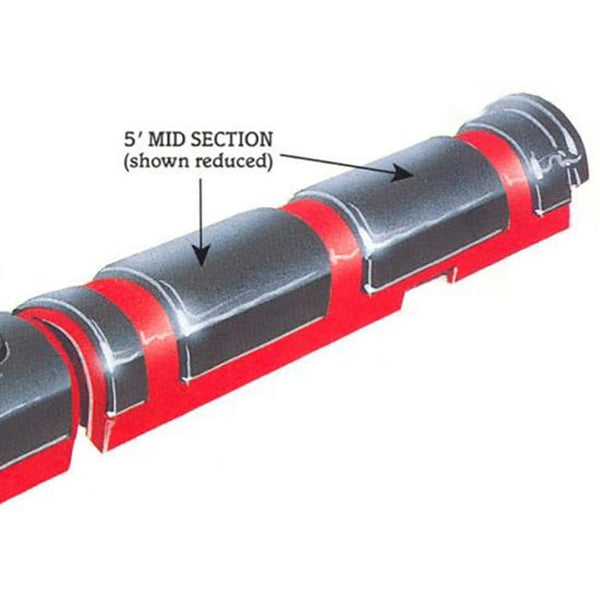

A 1.52 m (5 ft) Vacu-Boom mid section with a port. It extends a run in the same way as a plain section and additionally provides a take-off point along its length.
The section is a hollow flexible tube 127 mm (5 in) wide with a C-shaped cross-section, laid open side down, with liquid inlet openings along the bottom edge on one side. That side faces the water. It is a closed-cell vinyl nitrile elastomer foam with rigid moulded plastic structural members.
How a Vacu-Boom is assembled
A Vacu-Boom is built from 1.52 m (5 ft) sections into whatever configuration the job needs, rather than supplied as one fixed length.
The manufacturer's range comprises six basic parts. CCW stocks four of them:
- 5 ft mid section without port — extends the run
- 5 ft mid section with port — extends the run and provides a take-off point
- Cap end — closes the run and provides a vacuum connection
- Centre tap — T-shaped fitting placed near the centre of a layout so suction is distributed evenly in both directions
- Joiner clip — holds sections together
Two further parts are made by the manufacturer but not currently held by CCW, and both are needed for closed-loop or long multi-vacuum layouts — square corner fittings for squares and rectangles, and divider plates, thin flat plates fitted between sections to isolate internal airflow. We can order both. Ask us before specifying a perimeter or a run over 40 ft.
Cap ends and centre taps carry adjustable air vents, which prevent excessive vacuum pressure when the boom is connected to a large vacuum system.
Every joint is part of a vacuum manifold. A joint that is not properly seated is an air leak, and an air leak anywhere weakens the seal along the whole run, not just at that joint. Seat every clip and walk the line before switching on.
With port or without port — choosing correctly
CCW stocks two 5 ft mid sections at the same price. The manufacturer supplies both under a single part number and they are physically identical apart from the port, but they are not interchangeable in a layout:
- With port — extends the run and provides a take-off point along its length.
- Without port — a plain length that extends the run and nothing more.
Both kits ship with a mix: the 20 ft kit contains two ported and two plain sections, the 25 ft kit two ported and three plain. Taking the vacuum off part-way along a run rather than from the end is often the practical choice on a live site, because it keeps the hose out of the working area.
If you are unsure how many of each your layout needs, send us the site dimensions and we will work it through with you.
Vacuum and surface requirements
The boom seals by airflow, not weight. The manufacturer's minimum for a 20 ft run and longer is 202 CFM (approximately 343 m³/h) at 6.5 in Hg (approximately 22 kPa), through a 50 mm (2 in) hose. Keep the full 2 in bore through to the machine — restriction costs seal faster than distance does.
A relatively smooth, hard, non-porous surface is required. No crack or roughness tolerance is published, so prove the seal on site where pavement is aged or broken.
Important: the Razorback Floodmaxx Auto meets these figures at 275 CFM and 11 in Hg. Standard Razorback fibreglass portables with 2 x 5.7 in vacuum motors — Flood Mate Auto, Balboa 700 and Drago 1600 — deliver 185 CFM and are not suitable for a Vacu-Boom. Only the MAXX machines, with 2 x 6.6 in motors, reach the required airflow.
Chemical exposure and care
The manufacturer states general tolerance to alkalines, acids, petrochemicals and solvents when diluted at concentrations normally found in aqueous cleaning effluent, and excludes undiluted or concentrated aggressive chemicals, flammables and hazardous materials. Acidic chemicals require extreme dilution.
Chemical attack, where it happens, happens mostly in storage rather than in use. Rinse thoroughly after any use involving detergent or chemical, and never let chemical dry and harden on the sections. Done properly, the manufacturer reports service lives beyond ten years.
Warranty
The manufacturer's limited warranty covers the boom system against defects in materials or workmanship for three months from date of purchase, and the vacuum recovery unit with pump-out system for twelve months, provided the equipment is used in accordance with the written operating and maintenance instructions. It is a factory return warranty and excludes field labour, freight, ordinary wear, and damage from misuse or lack of maintenance.
These manufacturer terms are in addition to, and do not limit or exclude, your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. Talk to us about your situation — a three-month factory warranty on an imported product is not the whole picture, and we would rather discuss it before you order than after.
Manufacturer documents
- Component identification drawing (PDF)
- Technical Bulletin 1174 — special applications and configurations (PDF)
- Technical Bulletin 1176 — chemical compatibility (PDF)
- Technical specifications — VB20-VR1B system (PDF)
- Manufacturer limited warranty (PDF)
