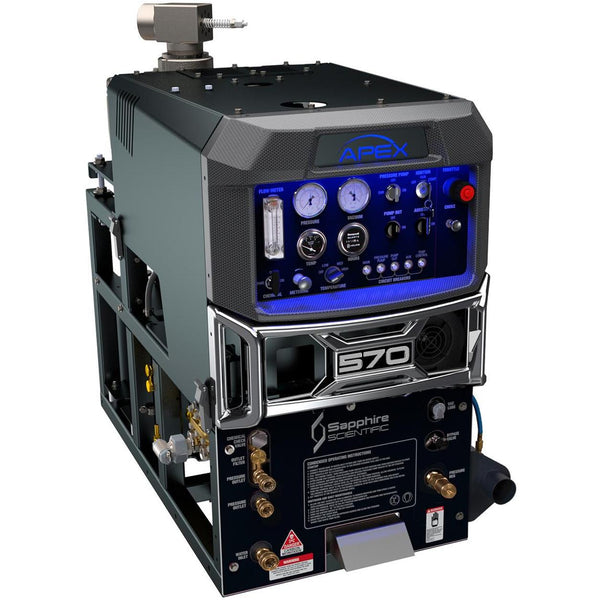

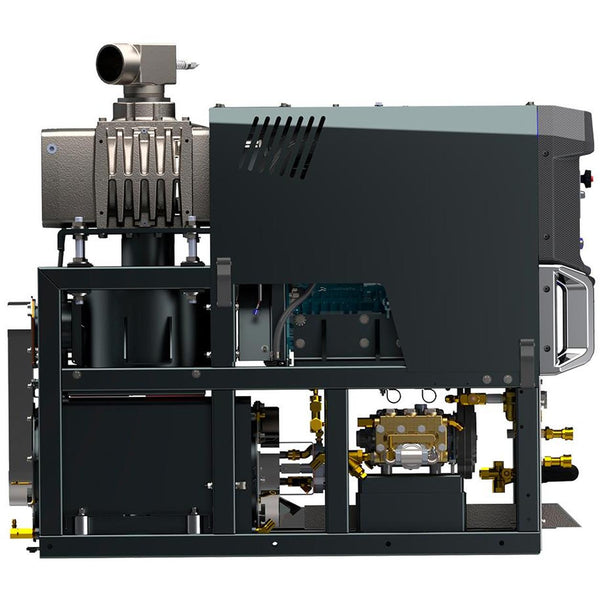

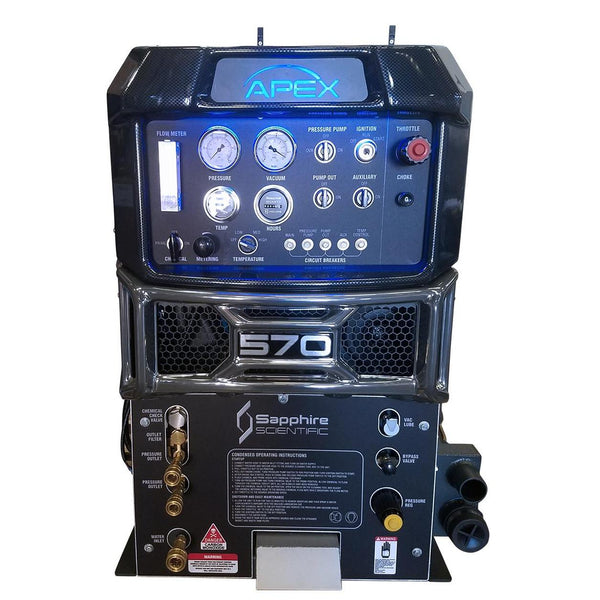

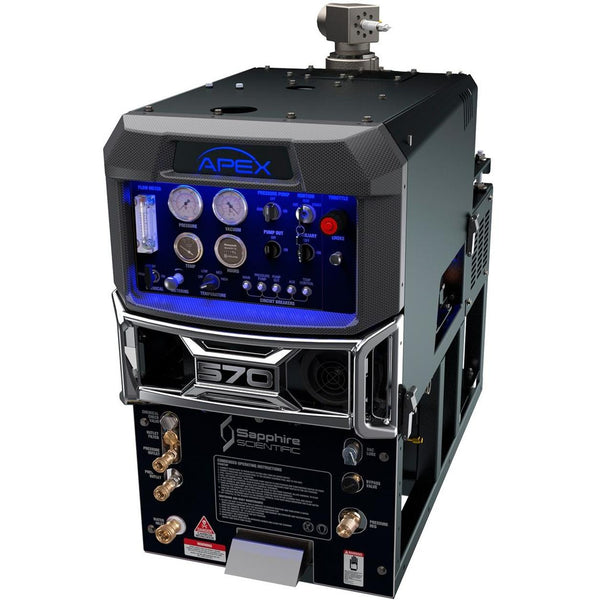

Sapphire Scientific Apex 570 Truckmount (In the Box Package)

Regular price $0.00

CALL FOR PRICING TODAY! Features a sleek new design and the superior performance you expect from Prochem and Sapphire Scientific!

The COOL new standard for longevity and reliability

New Cerakote ceramic-coating lowers the heat radiation on all exhaust components by more than 30% to reduce component fatigue and extend your truckmount life—plus keep the van interior cooler! Powered by a liquid-cooled 31 HP Kubota gasoline engine, the Apex 570 uses the patented Sapphire Scientific triple-source thermal well system to deliver maximum consistent heat.

FEATURES

  • Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
  • Through-frame drive belt cooling significantly reduces downtime by extending belt life
  • A Cerakote ceramic coating on the exhaust system minimizes heat and extends components' service life
  • The patented thermal well design incorporates a tube-and-shell heat exchanger to maximize heat transfer from the engine to the solution.
  • Easy-to-remove access panel and side hoods allow for quick service
  • Narrowest liquid-cooled slide-in on the market.

SPECIFICATIONS

  • Power plant:  Kubota WG972 31 HP liquid-cooled cast iron gasoline engine operating at 3000 RPM
  • Vacuum pump:  Gardner Denver tri-lobe HeliFlow® HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM.
  • Solution pump:  General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM
  • Waste tank:  90 gal. marine-grade aluminum. Optional: 120 gal. high capacity waste tank
  • Belt cooling:  100 CFM through-frame air injection system
  • Console Dimensions (W×H×D):  22 × 43 × 50 in. | 56 × 109 × 127 cm
  • Frame construction:  0.125 in. × 2 in. powder-coated aluminum box tubing.
  • Tank: 340Ltr waste tank optional 450Ltr

IN THE BOX Package includes:

Machine Power Console, Vacuum Recovery Tank, low-profile 14 in. 6-jet titanium alloy wand, 3 x 15 Metres Premium 2 Inch Vacuum Hose in cuffs and joiners, 1 x 30 Meters Premium High-Pressure Solution Hose Inc. quick connects & Premium Valve, 1 x 15 Meters Premium High-Pressure Solution Hose Inc. quick connects, 20 Litre Chemical Jug, Battery Box (battery not included), 15 Meters Water Supply Hose, Freshwater hook up, Installation and bolt down kit, Installation instructions, User manual, Import freight by sea, Transit insurance, Customs clearance, Duty, Handling charges and GST.

Basic Truckmount Package includes:

  • IN THE BOX Package PLUS
  • Supply & installation of Space saver hose reel
  • Stainless bolt down upgrade kit
  • Teflon strips installed under console, tank & reel
  • Bolt down of console, tank & reel
  • Fuel line splice & through floor hookup
  • Supply & install heavy-duty 12volt battery
  • Systems and safety check
  • Operator training

Deluxe Truckmount Package includes:

  • IN THE BOX Package PLUS
  • Supply & installation of external HD pump-out system
  • Supply & installation of Space saver hose reel
  • Triple hose reel upgrade
  • Supply and installation of three-tier van shelf
  • Supply of additional 15 meters vacuum and solution hose set inc fittings and connectors
  • Supply Hydroforce sprayer
  • Supply and install marine ply floor and marine carpet
  • Stainless bolt down upgrade kit
  • Teflon strips installed under console, tank & accessories
  • Bolt down of console, tank & accessories
  • Fuel line splice & through floor hookup
  • Supply & install heavy-duty 12volt battery
  • Systems and safety check
  • Operator training
