Overview
Solution valve spring for the HydraMaster stainless solution valve, listed as Spring, HM Solution Valve.
It returns the valve to closed when the trigger is released. A tired spring shows up as a valve that is slow to shut off, or that weeps after the trigger is let go.
Where it is fitted
- Solution valve assembly, with valve body 600-012-001 and valve stem 600-012-002

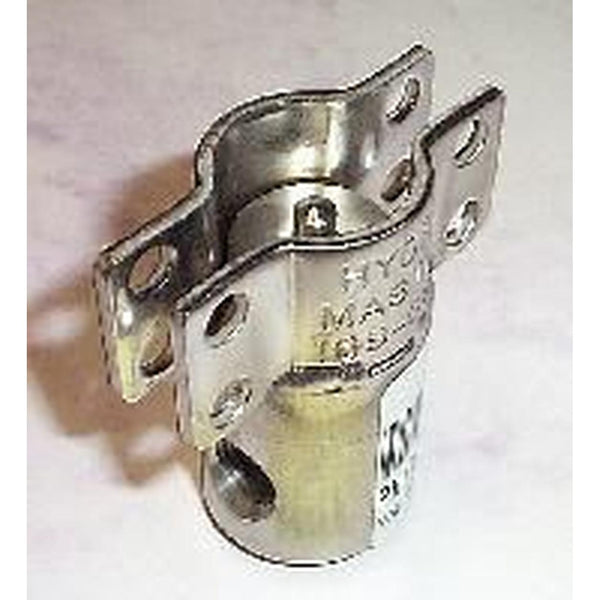

- Fitted in the stainless HydraMaster solution valve 169-058
Servicing the valve
If the valve is weeping, the spring is one of three wear items. The others are the plunger o-rings — 097-010 (large, valve plunger) and 097-022 (small, flow meter) — inside the stem assembly. Replacing all three at once is the usual approach; going back in for a second o-ring costs more in downtime than the part is worth.
Identifying the right part
CCW part codes are the HydraMaster part number with the 000- prefix removed — this item is HydraMaster P/N 000-155-003.
HydraMaster truckmounts share components across models and production years. If you are ordering for an existing machine, send us the model and serial number from the data plate and we will check it against the parts list for your machine.
Confirmed against the HydraMaster CDS 4.2 / 4.7 machine assemblies and parts lists. Fitment to other HydraMaster models has not been verified from a parts list — ask us if you are ordering for a different machine.
SPRING HYDRAMASTER SOLUTION VALVE
Related parts
- Solution Valve Stem Assembly (600-012-002) — plunger, o-rings, keeper and snap ring
- Repair O-Ring Kit, Solution Valve (078-019) — seals only
Frequently asked questions
Slow to shut off, or weeping — which is the spring?
The spring returns the valve to closed, so a tired spring shows as slow or incomplete shut-off. Weeping while closed points at the plunger o-rings instead. If you have both symptoms, service all three wear items together.
Can I stretch a tired spring to get more life out of it?
No. Stretching changes the rate and it will not return the valve reliably. It is a low-cost part on a valve that is opened thousands of times a day.
Do you stock the complete valve?
Not as a listed line. Send us your machine model and serial number and we will work out what you need.
