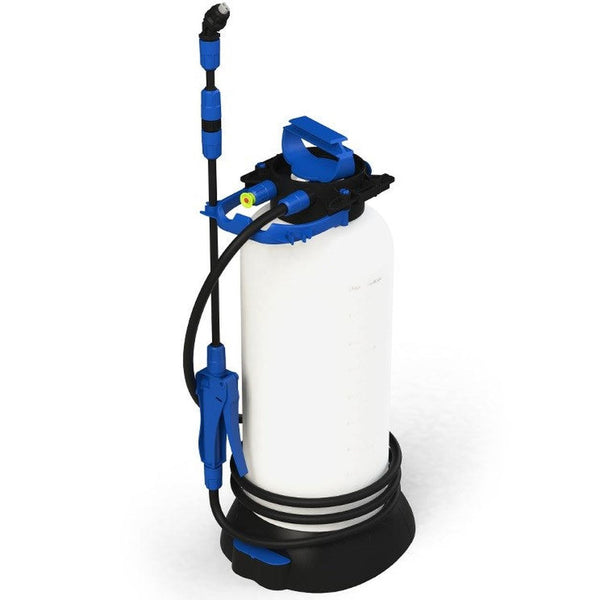

Pump-up foamer technology provides spot cleaning and sanitation solutions for the industrial and institutional markets.
Patented dual-tube technology draws the chemical and air from the tank into separate tubes creating thick foam when mixed at the trigger-operated foam wand. Flow in the air tube is controlled by a needle valve giving an operator the ability to control foam consistency.
- Compact unit with manual pump
- Maximum portability for small jobs and spot cleaning
- Comfortable grip handle with trigger for quick on/off control
- Ability to switch between short and long wand assembly
- Pressure relief valve for safety
- Viton seals for chemical compatibility
- Natural color tank for easy visibility of product levels
- Product level fill markings in gallons and liters
- Extra-wide stability base
- Vertical wand storage
Specifications
| POWER TYPE | Manual |
|---|---|
| CHEMICAL PICKUP TYPE | Draws from pre-mixed solution |
| NUMBER OF PRODUCTS UNIT CAN DRAW FROM | One product |
| CAPACITY | 2.6 gallons (10 liters) |
| DISCHARGE LINE LENGTH/DIAMETER | 6.5 ft. (2 m) hose, with 1/4 in. (6.4 mm) inside diameter) |
| DISCHARGE WAND/TIP TYPE | Polypropylene trigger handle with 17 in. (43.2 cm) wand extension and 110˚ fan tip |
| OUTPUT DISTANCE | 1-3 ft. (0.30-0.91 m) |
| OUTPUT VOLUME | 1.00 gal/min (3.78 l/min) |
| FLOW RATE* | 0.18 gal/min (0.70 l/min) |
| PUMP SEALS | Viton |
*Dilution rates and flow rates given are based on chemicals with viscosity of water and factory air pressure settings.
