Product Overview

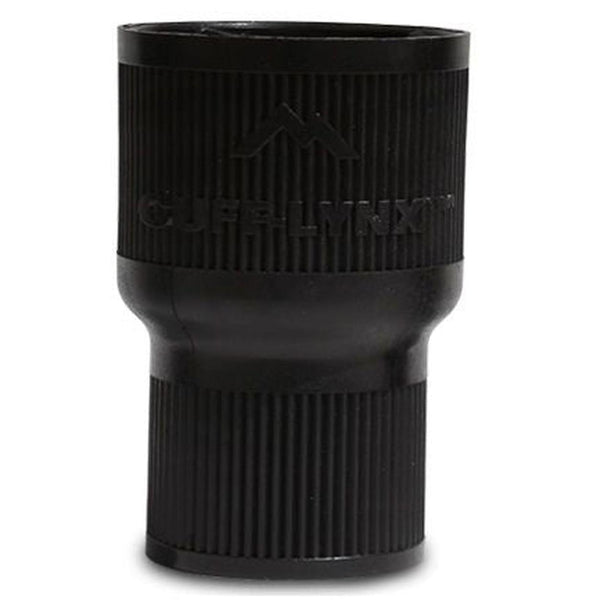

Mytee H141 Cuff-Lynx reducer. It screws onto the end of a 1.5 inch vacuum hose and gives it a 2 inch female Cuff-Lynx connection, so a 1.5 inch hose can join a 2 inch Cuff-Lynx port or hose.

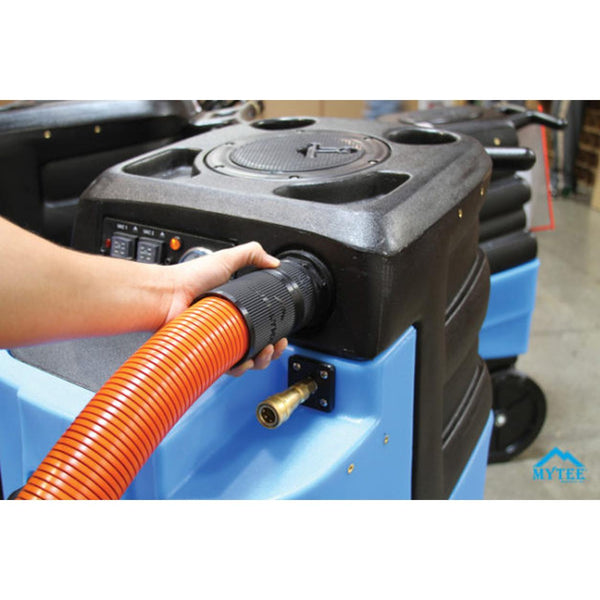

Mytee supplies it with Contractor's Special packages to connect the 1.5 inch vac hose to the machine's 2 inch Cuff-Lynx port, and lists it on the Speedster LTD5-LX and Escape ETM parts lists.

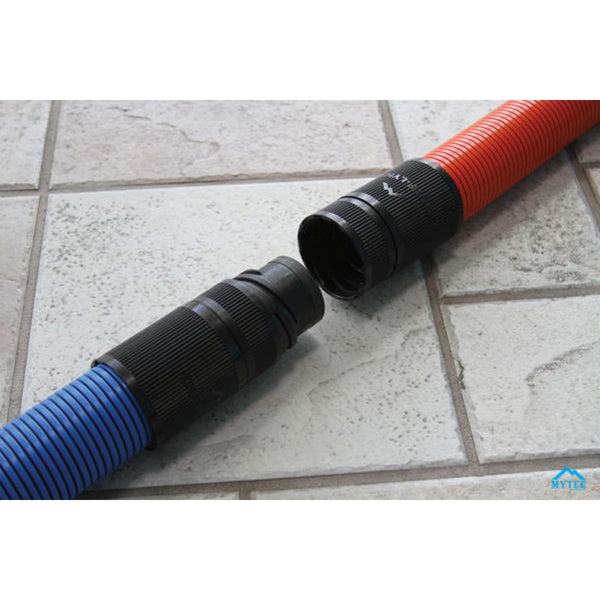

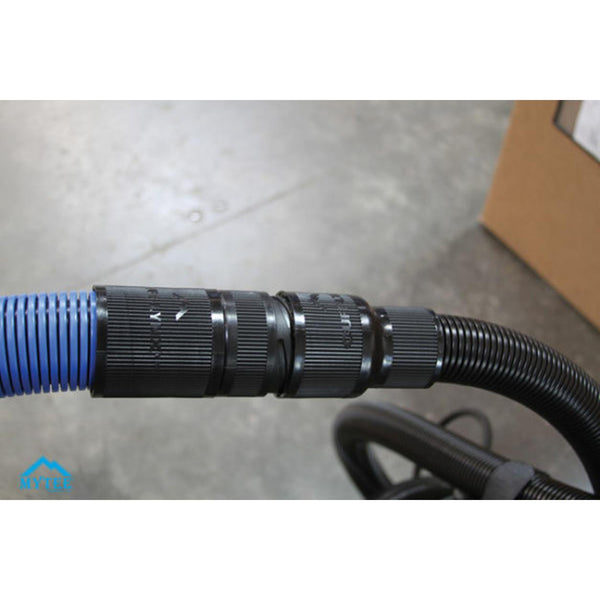

How Cuff-Lynx Works
- Nylon body, designed by Mytee to resist cracking in cold conditions.
- Threaded interlocking male and female connectors.
- O-ring seal at the joint to stop air leaks.
- A soft-lock twist action to connect and disconnect.

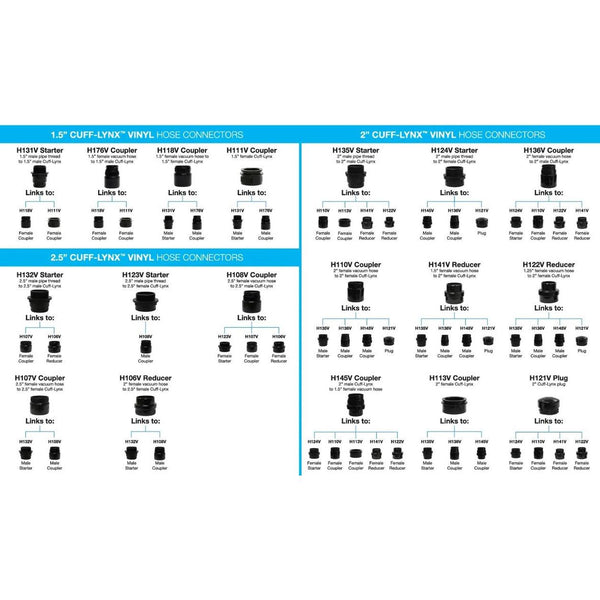

Mytee also makes vinyl Cuff-Lynx fittings, identified by a V suffix (for example H141V). This page is the H141.
Fitting

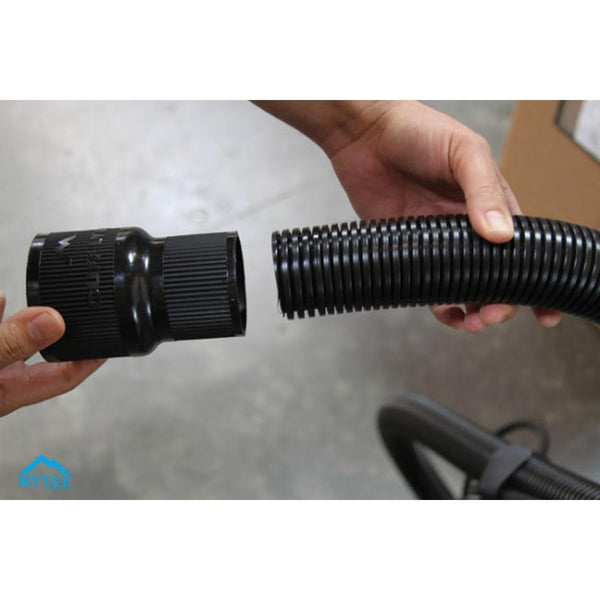

Remove the old cuff by twisting it off the hose, then twist the Cuff-Lynx onto the hose thread. Mytee recommends a small amount of all-purpose adhesive sealant on the hose thread to stop the hose unscrewing in use.
Instructions
Specifications
| CCW SKU | MPH141 |
| Mytee part | H141 |
| Connection | 2 inch female Cuff-Lynx |
| Hose end | 1.5 inch vacuum hose |
| Material | Nylon |
| Seal | O-ring |
Frequently Asked Questions
What does this connect?
A 1.5 inch vacuum hose to a 2 inch male Cuff-Lynx fitting.
Will it fit a 2 inch hose?
No. The hose end is 1.5 inch. For 2.5 inch hose down to 2 inch, see the Mytee Cuff-Lynx 2.5 Inch to 2 Inch Swivel Reducer.
Why does my hose keep unscrewing?
The thread relies on friction. Mytee recommends a small amount of all-purpose adhesive sealant on the hose thread.
Can I mix nylon and vinyl Cuff-Lynx?
Check with us before mixing the two series on one hose set.
Related Parts
- Mytee Cuff-Lynx 2 Inch Female Starter, 2 Inch Male Pipe Thread
- Mytee Cuff-Lynx 2.5 Inch to 2 Inch Swivel Reducer
What we see in the field
A reducer's handy, but there's no upside to making a leaky joint just to use a smaller hose. Check the cuffs and seals properly before you start blaming the vac motors.
Mytee part numbers change between machine generations. Tell us your model and serial number and we will confirm the part before you order.
