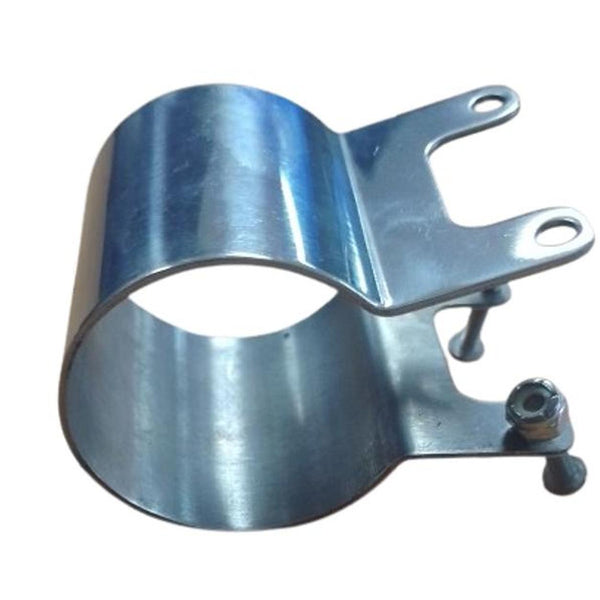

A 1.75 inch bolt-on valve hanger bracket, Westpak part number 10-0019, for mounting a wand valve such as the CMP 251-30 Kingston valve on a 1.75 inch wand tube. Westpak distributors list it for hanging most carpet cleaning wand valves on 1.75 inch pipe, including the 251-30 and Westpak Soft Touch valves.
The bracket is what holds the valve and its handle on the wand. Bolt-on means it clamps to the tube with no welding, so it can be fitted, moved or removed with hand tools, whether you are replacing an old bracket or setting up a wand.
Note: valve not included.
Important: Match the Bracket to Your Tube
This is the 1.75 inch bracket. CCW stocks three sizes and they do not adapt from one tube size to another:
Measure the outside diameter of your wand tube before ordering.
Specifications
| Size | 1.75 inch (44.5 mm) wand tube |
|---|---|
| Type | Bolt-on valve hanger bracket |
| Suits valve | CMP 251-30 Kingston valve; Westpak Soft Touch valves |
| Manufacturer part number | Westpak 10-0019 |
| Material | Not published; ask us |
| CCW SKU | PMVAC10-0019 |
Fitment
- CMP 251-30 Kingston valve (Wand Valve 251-30, PCMPV1175)
- Westpak Soft Touch valves (brass, 1200 psi, AW791 and stainless, 1500 psi, AW792)
This listing is the bracket only. The valve is sold separately.
Bolt-On or Weld-On?
Bolt-on is serviceable and reversible, which is what you want on a wand that may be reconfigured. The weld-on bracket is the permanent option.
Fitting Advice
- Release pressure from the solution line and disconnect the wand before working on the valve.
- Position the bracket so the valve lever sits where the operator's hand naturally falls on the wand, and so the solution line runs to the valve without a kink.
- Tighten the fasteners evenly until the bracket cannot rotate on the tube. Recheck after the first job, as fasteners can settle.
- If the valve itself is leaking, rebuild it with the 251-30 repair kit while it is off the wand.
Frequently Asked Questions
How do I know which size I need?
Measure the outside diameter of the wand tube where the valve will sit: 1.5 inch is 38.1 mm, 1.75 inch is 44.5 mm and 2 inch is 50.8 mm. Order the bracket that matches.
Does it fit valves other than the 251-30 and Soft Touch?
Westpak distributors describe it as suiting most carpet cleaning wand valves. CCW confirms the CMP 251-30 Kingston and Westpak Soft Touch. Send us a photograph before ordering for any other valve.
Is the valve included?
No. This is the bracket only.
Send us a photograph of your valve and wand if you are not certain which bracket you need.
