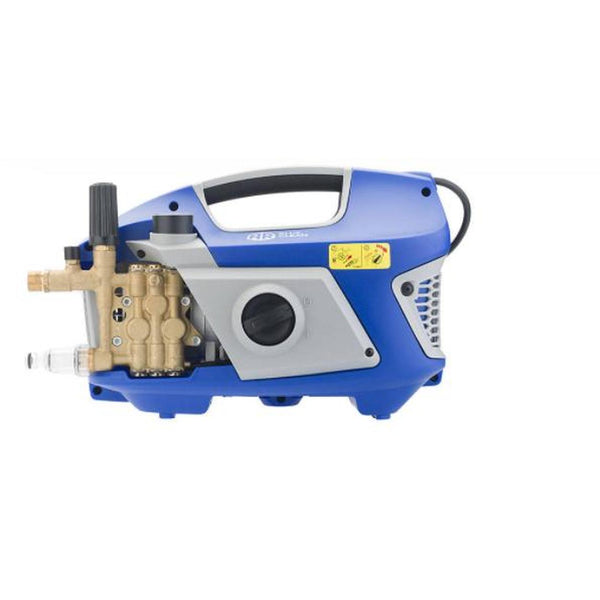

The Annovi Reverberi 613 is a compact, professional cold-water electric pressure washer delivering 2175 psi (150 bar) at 8.3 litres per minute from a 2.5 kW, 220–240 V motor. It is supplied ready to go with 8 metres of hose, a trigger gun and lance.
For carpet cleaners, its main job is to turn a portable into a tile cleaning machine: the 613 supplies the high-pressure water to a rotary tile tool, and the portable’s vacuum recovers the dirty water.
Product Overview
The 613 is built around a triplex plunger pump with a connecting-rod (crank) drive, ceramic-coated stainless steel pistons, and an automatic bypass valve with pump-head pressure discharge. The electric motor has a thermal protector. Pressure is adjustable, with a pressure gauge, built-in detergent suction, an inspectable water filter and a 5 m power cable.
The manufacturer lists the model as the AR Blue Clean 613 (AR code 13975), a single-phase induction-motor machine rated for inlet water up to 60 °C.
Why Professionals Choose It
- Triplex pump — three ceramic-coated pistons on a connecting-rod drive, the pump layout used on professional machines.
- Adjustable pressure — set the output to suit the tool and the surface rather than running flat out.
- Portable — 16.8 kg on a compact frame, easy to carry into a job alongside a portable extractor.
- Serviceable — inspectable water filter and a pressure gauge to confirm what the pump is delivering.
- Thermal protection — the motor’s thermal protector guards against overheating.
Using It for Tile and Grout Cleaning
Around 1,000 psi is sufficient for most tile and grout cleaning. The 613 can deliver more than twice that, so wind the pressure back to suit the tool and the surface. Before connecting, check the maximum pressure rating of the tile tool, the solution hose and every fitting in the line — the lowest-rated component sets the limit for the whole system.
A rotary tile tool also needs a vacuum source to recover the water. A portable extractor provides that; the 613 supplies the pressure in place of the portable’s own pump.
Technical Specifications
| Maximum pressure | 2175 psi (150 bar) |
|---|---|
| Flow | 8.3 L/min (500 L/h) |
| Motor power | 2.5 kW |
| Power supply | 220–240 V, 50 Hz, single phase |
| Motor type | Induction motor with thermal protector |
| Pump | Triplex plunger pump, connecting-rod drive, ceramic-coated stainless steel pistons |
| Pump speed | 2800 rpm |
| Pump head | Aluminium (manufacturer data). CCW’s earlier description also referred to a brass pump head — contact CCW if head material matters for your application. |
| Bypass | Automatic bypass valve with pump-head pressure discharge |
| Maximum inlet water temperature | 60 °C (cold-water machine) |
| Detergent | Built-in detergent suction |
| Filtration | Inspectable water filter |
| Power cable | 5 m |
| Weight | 16.8 kg |
| Dimensions | 460 × 280 × 260 mm (CCW measurement); 434 × 275 × 263 mm (manufacturer data) |
| Manufacturer model | AR Blue Clean 613 (AR code 13975) |
| CCW SKU | BG213613-WF |

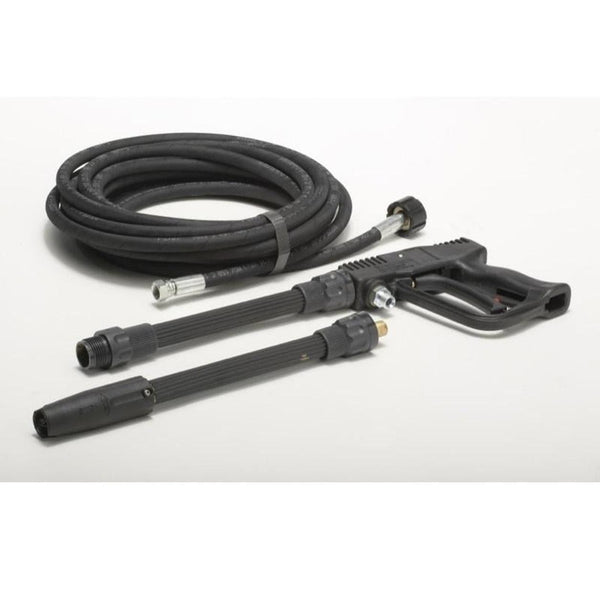

What’s Included
- Annovi Reverberi 613 pressure washer
- 8 metres of high-pressure hose
- Trigger gun and lance
Supplied ready to go.
Operating Advice
- Connect the water supply before switching on — never run the pump dry.
- Keep inlet water at or below 60 °C. This is a cold-water machine with no heater.
- Check the inlet water filter regularly and clean it when needed — a blocked filter starves the pump.
- Set the pressure for the tool and surface, not for maximum output.
Frequently Asked Questions
Can I use it with my portable to clean tiles?
Yes — that is its main use in the carpet cleaning trade. The 613 supplies pressure to the tile tool and the portable supplies vacuum recovery. Check that the tool, hoses and fittings are rated for the pressure you set.
How much pressure do I need for tile and grout?
Around 1,000 psi is sufficient for most tile and grout work. The 613’s adjustable pressure lets you set it to suit.
Can it run hot water?
It is a cold-water machine with no heater. The manufacturer rates the inlet for water up to 60 °C.
What power supply does it need?
220–240 V, 50 Hz single phase. The motor is rated at 2.5 kW — contact CCW to confirm the supply requirements for your site before you order.
Does it take detergent?
Yes. It has built-in detergent suction.
How does it compare with the Annovi Reverberi 620?
CCW also stocks the Annovi Reverberi 620 Electric Pressure Washer (1900 psi / 8 L/min). Contact CCW for help choosing between the two.
Related Products
Setting up a portable for tile cleaning for the first time? Contact Carpet Cleaners Warehouse before you order and we will help you match the pressure washer, tile tool and fittings.
