Multiple Sensors can be used with one Station. Registration and on-site set-up are simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point and grains per pound/grams per kilo readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform. Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor your status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System.

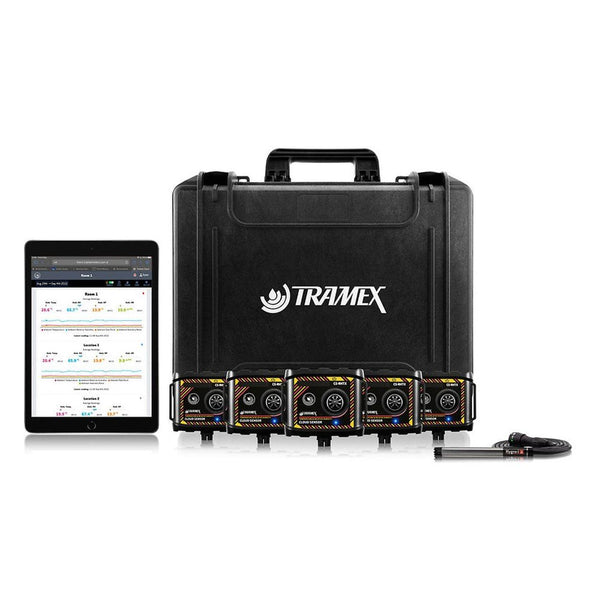

Kit Includes:
- 5 x CS-RHTX Tramex Cloud Sensors

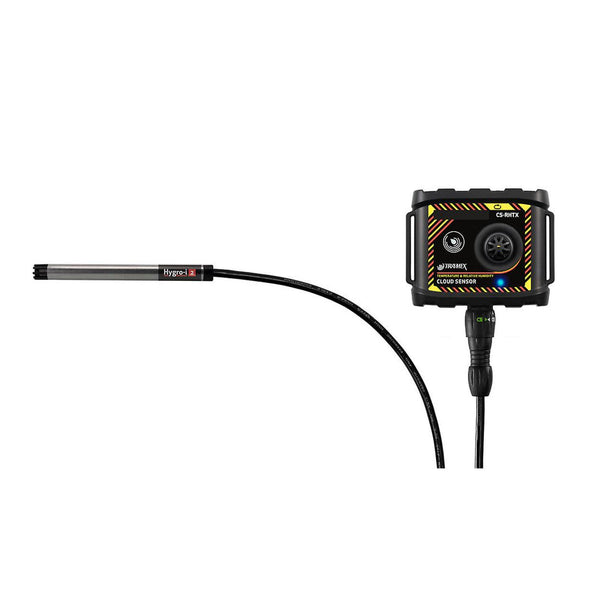

- 5 x External Relative Humidity probes for in-situ
- 1 x Heavy Duty Protective Carry Case
- Tramex Cloud Software Monitoring platform (Tablet not included)
Specifications:

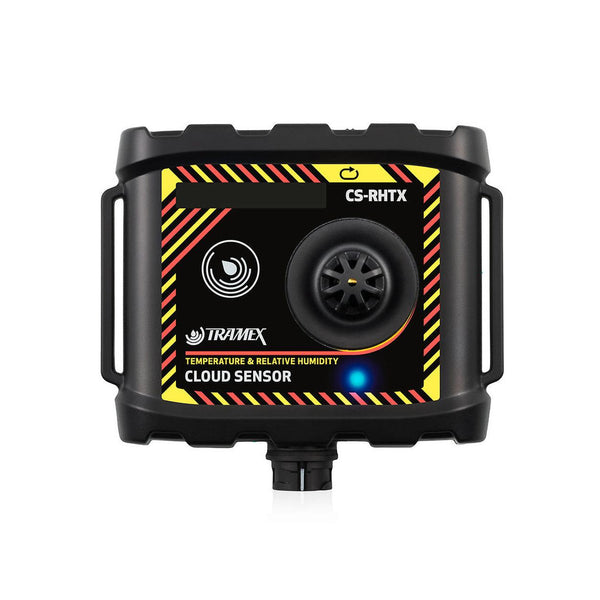

Cloud Xtra Sensor
Temperature Sensor Specifications:
| Exceptional Accuracy: | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range: | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection: | PTFE Film protects the sensor opening from water & dust |
| Drift: | <0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy: | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range: | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Specifications:
| Transmission Range: | Over 3kms line-of-sight |
| Communication Frequency: | Multiple readings per hour. |
| Identification: | Items are individually coded for ease of installation and logging identification. |
| Size: | 100mm x 90mm x35mm (3.94” x 3.54” x 1.38”) |
| Weight: | 100g (3.53oz) |
| Construction: | ABS enclosure |
| Power: | Built-in long-life CR123A battery |
| Included: | Wall Mounting |
Relative Humidity Sensor
Temperature Sensor Specifications:
| Exceptional Accuracy: | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range: | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection: | PTFE Film protects the sensor opening from water & dust |
| Drift: | <0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy: | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range: | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.
Kit Specifications
| Size: | 43.5cm x 36cm x 14cm (17.1” x 14.2” x 5.5”) |
| Weight: | 3.56kg (7.6lbs) |
| Power: | 5 x CR123A 3-volt batteries (included) |
Product Order Code: TMAP-TREMS-Xtra
Pack contents
- 5 x additional CS-RHTX Tramex Cloud Sensors
- 5 x attachable in-situ relative humidity probes
This is an accessory pack, not a complete system
Accessory packs add sensors to an existing TREMS installation. They do not include a Cloud Station router and cannot operate on their own. If you are starting from scratch, order a TREMS kit first.

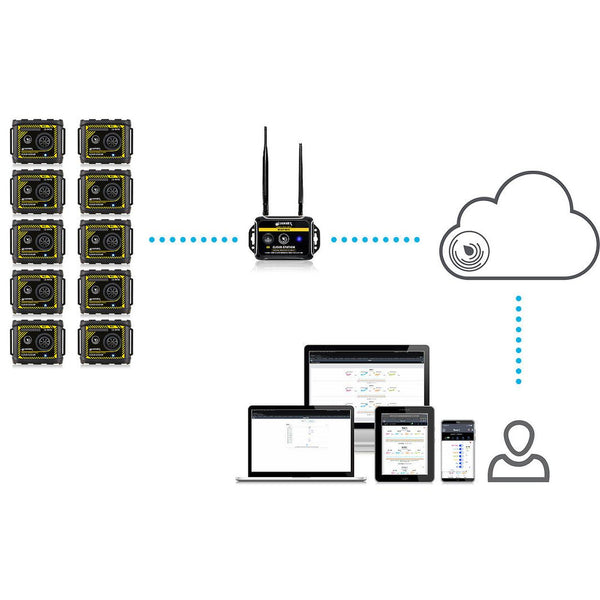

How the system works
On-site Cloud Sensors transmit relative humidity, temperature in °C and °F, dew point and grains per pound (grams per kilo) wirelessly to a Tramex Cloud Station router, which uploads to the Tramex Cloud platform. Readings can then be viewed remotely, without anyone attending the site.
- Battery life of up to 15 years per sensor
- One Cloud Station supports up to 200 on-site sensors
- Registration and on-site set-up by QR code check-in
- Real-time readings with notification of environmental changes
Why remote monitoring changes a drying job
Attendance is the expensive part of a drying programme. A technician driving across town to read a hygrometer is a cost that produces one data point. Remote sensors produce continuous evidence of what the conditions actually did overnight and over weekends, which is what settles a disputed claim and what tells you a site is finished without a site visit to confirm it.
The TREMS range compared
| Kit | Sensors | Measures |
| TREMS-5 | 5 x CS-RHTA + Cloud Station | Ambient RH, temperature, dew point, GPP |
| TREMS-10 | 10 x CS-RHTA + Cloud Station | Ambient RH, temperature, dew point, GPP |
| TREMS-Xtra | 5 x CS-RHTX + 5 external RH probes + Cloud Station | Ambient plus in-situ relative humidity |
| TREMS-WME/MC | 5 x CS-RHTX + 5 external WME/MC probes + Cloud Station | Ambient plus material moisture content / WME |
The choice is about what you need to prove. The TREMS-5 and TREMS-10 monitor the air. The Xtra adds probes reading relative humidity inside the structure. The WME/MC adds probes reading moisture content in the material itself. One Cloud Station supports up to 200 sensors, so a system grows by adding accessory packs rather than replacing the station.
Frequently asked questions
Do I need a separate Cloud Station for each job?
One station per site. A single station supports up to 200 sensors, so larger sites are covered by adding sensors, not stations. Running several sites at once means a station on each.
Can I add sensors later?
Yes. Accessory packs add sensors to an existing station – AP-TREMS-5, AP-TREMS-10 and AP-TREMS-Xtra. Match the sensor type to your kit: CS-RHTA for ambient, CS-RHTX where external probes are used.
What happens if the site loses internet?
This is worth checking against your site conditions before quoting a monitoring job. Contact us and we will confirm the current connectivity requirements with Tramex rather than guess.
Is there an ongoing platform cost?
Cloud platform access and any subscription terms are set by Tramex and can change. Contact us for the current position before committing to a monitoring contract.
TREMS is a system rather than an instrument, and the right configuration depends on the sites you monitor. Contact Carpet Cleaners Warehouse before ordering and we will size it against the work you do.
