Remotely monitor In-situ Wood Moisture Equivalent, WME, & Moisture Content, MC, and Ambient Temperature and Relative Humidity, WITH SECURE MONITORING SOFTWARE.
The Tramex Remote Environmental Monitoring System WME/MC allows for Moisture Content (%MC) monitoring in wood and Wood Moisture Equivalent (WME) monitoring in a variety of building materials such as wood-based products, drywall or plasterboard. Additionally, the system enables ambient temperature and relative humidity monitoring to ensure optimal environmental conditions.
Designed and developed by Tramex, this state-of-the-art technology can notify users allowing for quick response to in-situ and environmental changes.

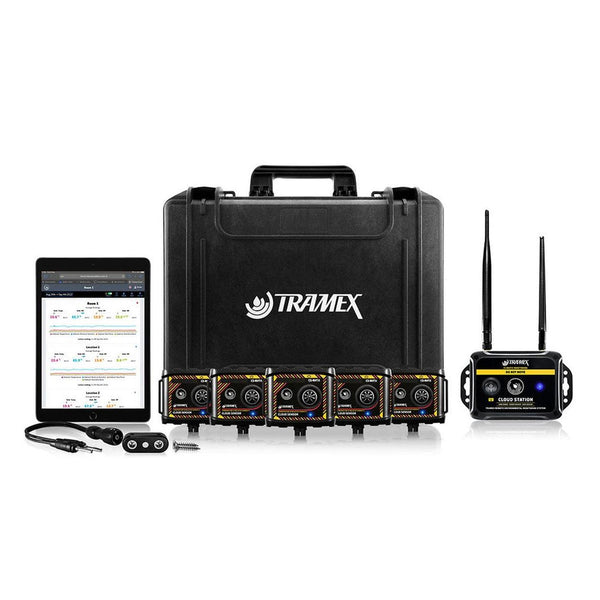

The TREMS-WME/MC kit comprises a Tramex Cloud Station router, 5 CS-RHTX Tramex Cloud Sensors for ambient conditions, and 5 external WME/MC probes.
Multiple Sensors can be used with one Station and additional Sensor and WME/MC probe Accessory Packs are also available, meeting your specific monitoring requirements.

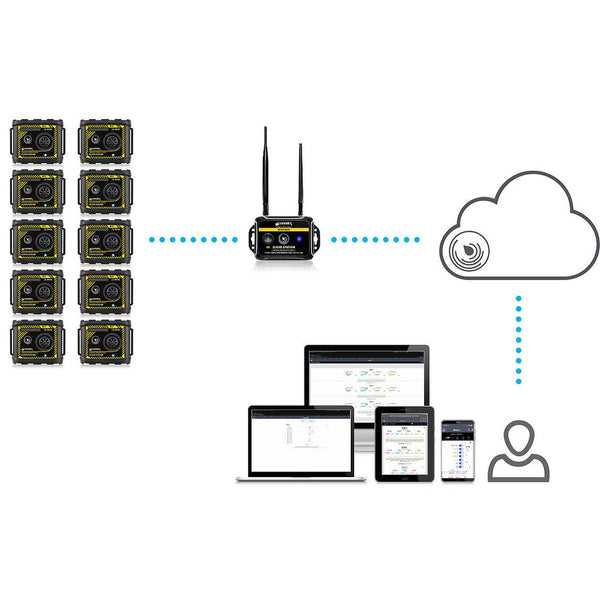

Registration and on-site set-up are simple using a QR code check-in procedure. The on-site Sensors, with long-life batteries, transmit relative humidity, temperature (ºC and ºF), dew point, grains per pound/grams per kilo and WME/MC readings wirelessly via the Tramex Cloud Station enabling remote monitoring of up to 200 on-site Sensors on the Tramex Cloud platform.
Tramex Cloud is a secure platform to store and report your moisture, temperature and relative humidity measurements, get notified of adverse conditions and quickly monitor your status from any browser.
There are no subscription fees and there is free data with the Tramex Remote Environmental Monitoring System WME/MC.
Kit Includes:
- 5 x CS-RHTX Tramex Cloud Sensors
- 5 x WME/MC electrode probes
- 1 x Tramex Cloud Station
- 1 x Heavy Duty Protective Carry Case
- Tramex Cloud Software Monitoring platform (Tablet not included)
- Antennae for Cloud Station
Specifications:

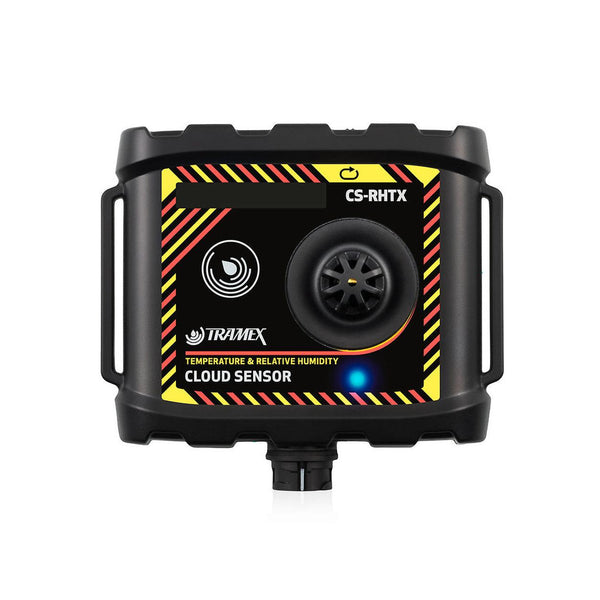

Cloud Xtra Sensor
Temperature Sensor Specifications:
| Exceptional Accuracy: | ±0.1 °C Range 20°C to 60°C (±0.1ºF Range 68ºF to 140ºF) |
| Range: | -40ºC to 125ºC (-40ºF to 257ºF) |
| Sensor Protection: | PTFE Film protects the sensor opening from water & dust |
| Drift: | <0.03ºC (0.04ºF) per year |
Relative Humidity Sensor Specifications:
| Exceptional Accuracy: | ±1.5%RH Range 0% to 80%RH, ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Range: | 0 to 100%RH |
| Resolution | 0.1% over the complete range |
| Drift | <0.25%RH per year |
Specifications:
| Transmission Range: | Over 3kms line-of-sight |
| Communication Frequency: | Multiple readings per hour. |
| Identification: | Items are individually coded for ease of installation and logging identification. |
| Size: | 100mm x 90mm x35mm (3.94” x 3.54” x 1.38”) |
| Weight: | 100g (3.53oz) |
| Construction: | ABS enclosure |
| Power: | Built-in long-life CR123A battery |
| Included: | Wall Mounting |

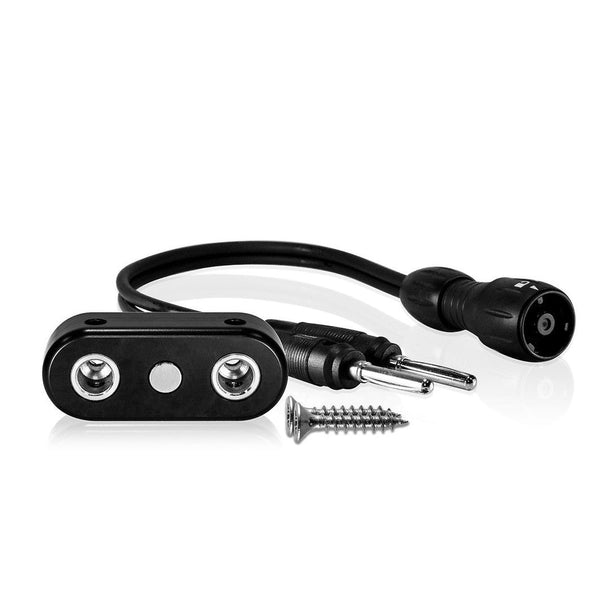

WME/MC Probe Specifications:
| Wood Moisture Equivalent (WME/MC): | 0 - 100 |

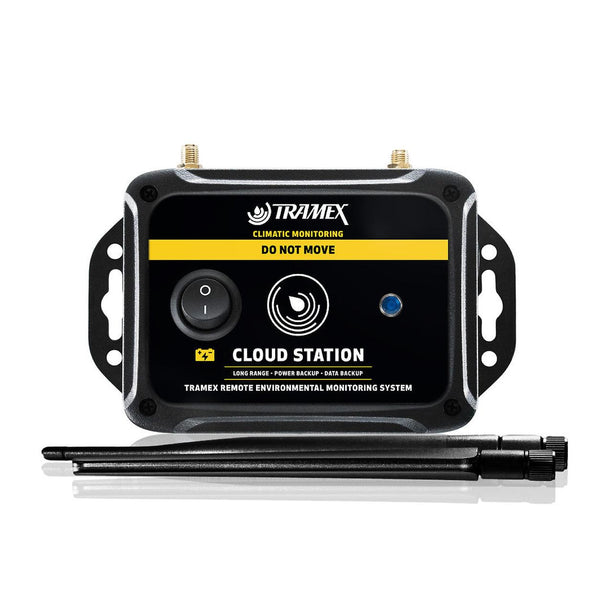

Tramex Cloud Specifications:
| Frequency: | Region Specific frequency available |
| Security: | WPA2-PSK encryption, no unwarranted telemetry/tracking. |
| Size: | 150mm x 90mm x 50mm (5.9” x 3.6” x 2”) |
| Weight: | 280g (9.9oz) |
| Power: | Universal AC Power Adapter |
| Construction: | Wall-mountable ABS enclosure |
Data is stored free of charge for a period of 2 years, after which, following our data retention policy, you will need to download it.
Kit Specifications:
| Size: | 43.5cm x 36cm x 14cm (17.1” x 14.2” x 5.5”) |
| Weight: | 3.56kg (7.6lbs) |
| Power: | 5 x CR123A 3-volt batteries (included) |
Product Code: TREMS-WME-MC
