The powerful Delmhorst BDX-30 Moisture Meter brings all the design elements and functionality of the BDX-20, and also introduces Bluetooth integration to the Navigator family with the Delmhorst EDGE app!
This exciting addition to the meter enhances your ability to ensure precise readings from anywhere and export data including geotags and timestamps.
The BDX-30 brings today’s technology from the field to the office, making the most challenging project easier, more efficient, and most accurate.
- Delmhorst EDGE™ app with Bluetooth® connectivity

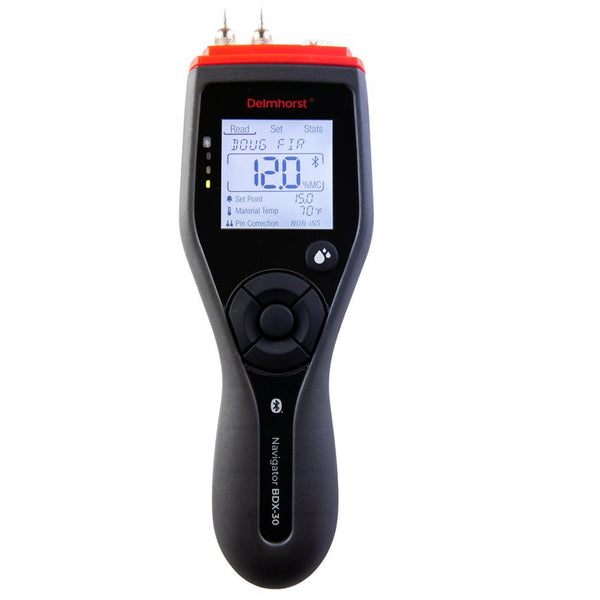

- Large, custom display with auto backlight - easy to read under all conditions.
- Species/Materials – download up to 15 into the meter out of 37 available
- MC range:
- 6%-60% Wood (Douglas Fir)
- 0.1% -6% Drywall
- 0-100 Reference scale
- Wood temperature correction (°F/°C)
- Alarm set point - alerts to user-selected MC level
- On-screen readings statistics – High, Low, Average, Standard Deviation, Last 10
Internal calibration check
- Pins/electrode correction (insulated or non-insulated)

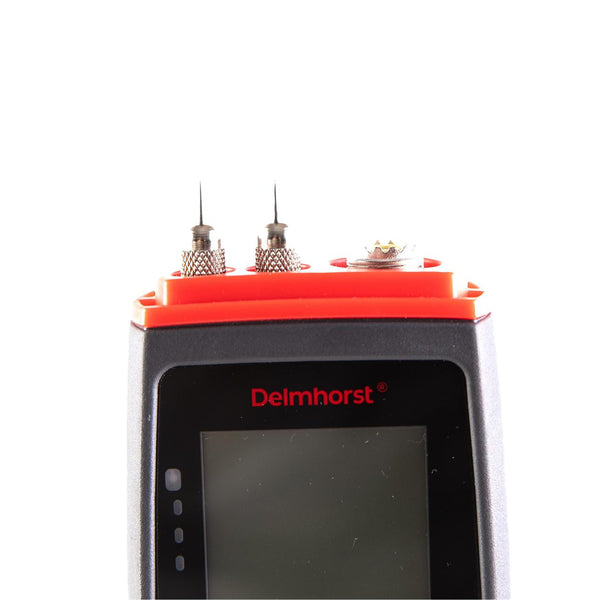

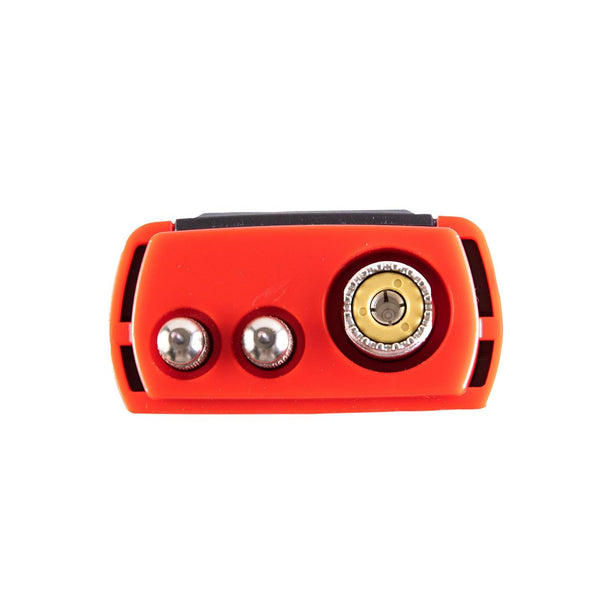

- Integral contact pins max 5/16” penetration (use 2498/A-100)
- Compatible with any Delmhorst external electrode.
- Color-coded LED’s – adjustable through EDGE™ app
- Multi-language - available fall 2021

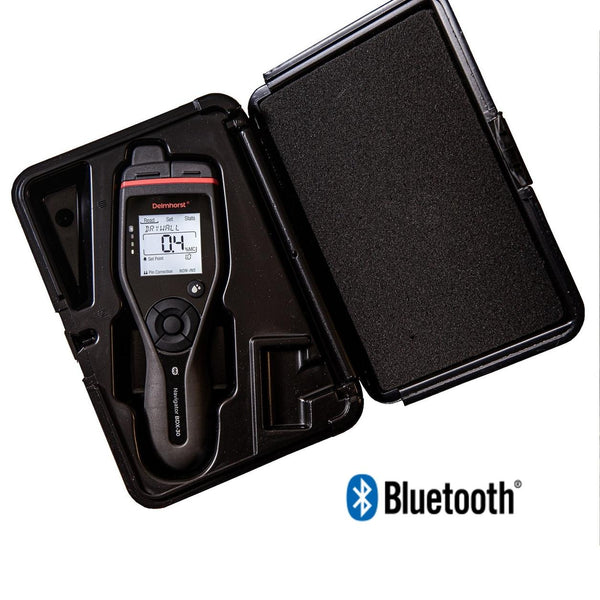

- Sturdy plastic carrying case – included
- Power – 2x AA batteries – Alkaline Energizer included
- “Low Batt” warning with audio
- Auto off timer. Set to 1m, 4m or 10m
- QR code on meter for easy access to support materials
- Size: meter only - 8.65in (2.2mm) x 2.85in (72mm) x 1.55in (39mm); in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)
- Weight: meter only - 0.4.5oz (1.3g); in carry case - 18oz (510g)
- 2-year warranty on manufacturer’s defects. Bonus extended warranty with on-line registration.
BDX-30 Package Variations:
Meter with carrying case: Order as BDX-30w/CS
P01 – Behind the Wall Package: Includes meter, 21-E electrode (3in penetration) and carrying case. Order as BDX-30/P01
P02 – Wood Flooring Package: Includes meter, 26-ES hammer electrode, extra pins and carrying case. Order as BDX-30/P02
P03 – Contractor/EIFS Package: Includes meter, 26-ES (and extra pins) and 21-E electrodes, HP-1 hole punch, 608-001 (7in spares for 21-E), pluck foam insert in case. Order as BDX-30/P03
EDGE™ Bluetooth app features – available with BDX-30 only
- List of meter’s saved readings with timestamp and geotag
- Graphical capability
- Data export to .csv – full or selected data sets
- Save unlimited readings
- Access to expanded species/material selections
- Customize LED ranges
- Multi-languages in meter – English, Spanish, French, German, Italian, Russian
- Species sets for international species
- Use EDGE™ with smartphone or tablet.
Apple App Store: https://apps.apple.com/us/app/delmhorst-edge/id1521544764
Google Play Store: https://play.google.com/store/apps/details?id=com.Delmhorst.CompanionApp
