Product Overview

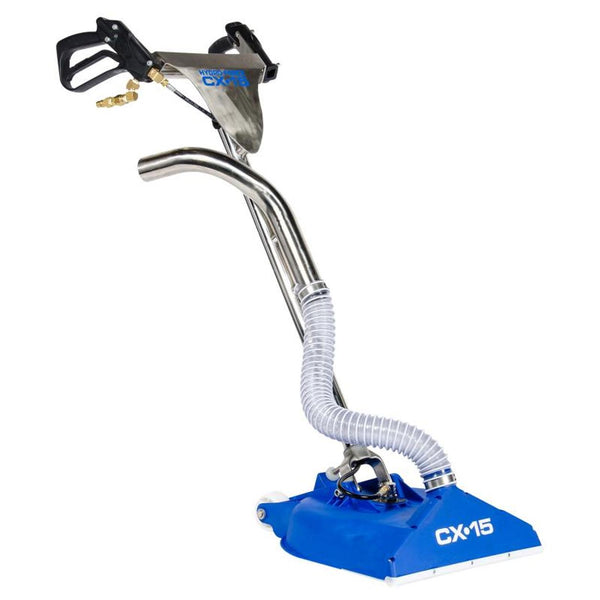

The CX-15 is a rotary extraction tool that sits between a carpet wand and a powered rotary machine. Twin jets driven by solution pressure spin the head, making over 4,000 cleaning passes per minute, with no motor and no power lead.
It weighs 9 kg. A powered electric rotary machine of comparable coverage is around 36 kg.
How It Works
- Pressure driven. Solution pressure between 400 and 800 psi spins the jets. No electricity, no cord.

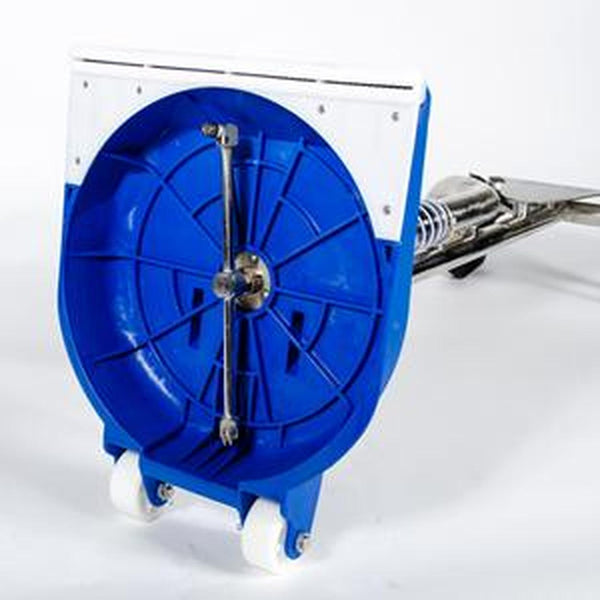

- Rotary jets clean the fibre from all sides rather than in one direction like a wand pass.
- The head traps heat, so the solution stays hotter where it is working.
- Hydro-Glide and a smooth chamber keep airflow and velocity up, which is what dries the carpet as you go.
Where It Fits Between a Wand and a Rotary Machine
| Carpet wand | CX-15 (this tool) | Powered rotary machine | |
|---|---|---|---|
| Agitation | Directional, operator dependent | Rotary jets, 4,000 passes/min | Mechanical rotary |
| Power | None | Solution pressure only | Electric, needs a lead |
| Weight | Light | 9 kg | Around 36 kg |
| Edges and timber floors | Good | Cleans close to walls | Care required |
The trade is real in both directions: it agitates far more aggressively than a wand and it does not carry the weight, the lead or the price of a powered machine.
Pressure Requirement
It needs 400 to 800 psi to drive the jets. A machine that cannot deliver that will connect and will underperform, because the rotation is doing the work.
Tell us your machine before ordering and we will confirm it will drive the tool properly.
Specifications
| Part number | AW115 |
|---|---|
| Operating pressure | 400 to 800 psi |
| Cleaning passes | Over 4,000 per minute |
| Weight | 9 kg |
| Drive | Solution pressure, twin rotary jets — no electricity |
| Swivel | Swivel with Flange (NX105) |
Maintenance
The swivel is the wearing part on any rotary tool — a rotating seal carrying pressurised hot solution. A weep at the swivel is a service item rather than a fault, and it can often be rebuilt with the ceramic seal kit (PM036903) instead of replacing the whole swivel.
Operating Advice
- Keep it moving. A rotary tool held still on one spot over-wets and can distort pile.
- Do not run it dry. The swivel relies on solution flow for cooling and lubrication.
- Overlap passes and work back toward an exit.
- Check pressure at the tool, not at the machine. Hose length and fittings take their share.
Frequently Asked Questions
Does it need electricity?
No. Solution pressure drives the rotation.
What pressure do I need?
400 to 800 psi at the tool. Below that the jets will not drive it properly.
Can I use it near walls and timber floors?
Yes, it is designed to clean close to walls. Normal care still applies around timber.
Is it a replacement for a rotary machine?
It is a crossover tool. It agitates far more than a wand without the weight, the lead or the cost of a powered machine, and a powered machine still does more on the heaviest work.
What wears out?
The swivel, and the jets. Both are serviceable.
Documents
What We See in the Field
Crossover tools get judged against whichever tool the operator already owns. Coming from a wand, the agitation is the revelation; coming from a powered rotary, the weight is. Either way the pressure at the tool is what decides whether it performs, and that is worth measuring before blaming the tool.
