Product Overview

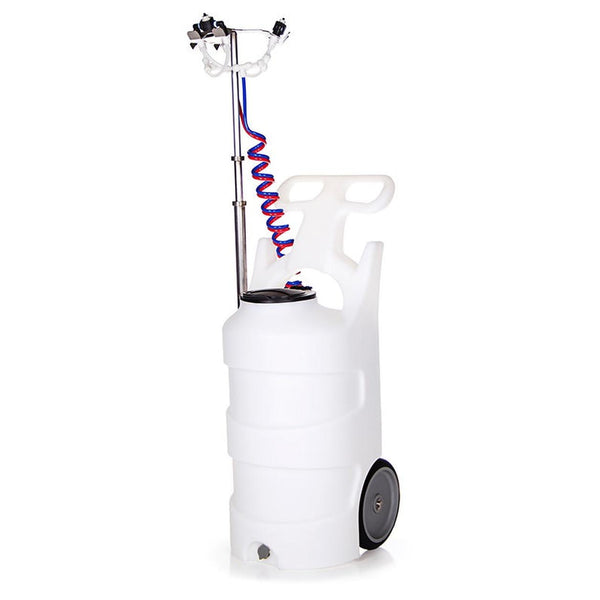

DEMA FOAMit portable fogger, 10 US gallons (37.9 litres), with 3 nozzles on a telescoping mast. It runs on compressed air and fogs a pre-mixed solution at a 15 micron droplet size for treating the air space of a room.
Features
- Draws from pre-mixed solution; powered by compressed air.
- 3 nozzles on a telescoping mast adjustable from 1.1 m to 2.6 m; polypropylene and Kynar nozzle construction.
- Droplet size 15 microns at 50 psi (3.4 bar).
- A full tank runs for approximately 1.5 hours.
- Optional timer with delay — start the unit and leave the room before it begins fogging.
- Hinged back plate for tool-free access; quick-change pump.
- Natural colour tank, hinged lid, front-facing drain and in-line strainer to protect the pump.
Coverage
FOAMit states 1 litre of solution covers approximately 28.3 m³ (1,000 cubic feet), up to a system maximum of 1,340 m³. Area covered and run time vary with humidity, air flow and the product used.
Important — Before You Fog
Only fog products whose label and SDS permit fogging application, and follow the label for dilution, re-entry time and PPE. The optional delay timer exists so the operator is out of the room when fogging starts.
Important — Chemical and Seal Compatibility
FOAMit states that chemical products used with this equipment must be formulated for this type of application and compatible with the unit materials and pump seals. Check the SDS for your chemical against the seal material before use, and flush the unit with fresh water when changing between chemistries.
Specifications
| CCW SKU | D910.FOG3 |
| Power type | Compressed air |
| Air requirement | 50 psi (3.4 bar) at 7 cfm (198.3 L/min) |
| Chemical pickup | Draws from pre-mixed solution (one product) |
| Suction line | 9.5 mm (3/8 inch) ID |
| Capacity | 37.9 litres (10 US gallons) |
| Flow rate | 14 L/hour (3.7 gal/hour) at each nozzle* |
| Nozzles | 3, on telescoping mast 1.1–2.6 m |
| Droplet size | 15 microns at 50 psi (3.4 bar) |
| Coverage | Approx. 28.3 m³ per litre, system max 1,340 m³ |
| Run time from full tank | Approx. 1.5 hours |
| Pump seals | Santoprene (optional Viton or Kalrez) |
| Wheels | Two 25.4 cm (10 inch) non-marking wheels |
| Liquid temperature | 4.4–37°C (40–100°F) |
| Timer | Optional — allow 4–5 months for delivery |
*Flow and run time vary with chemical viscosity, humidity and air flow.
CCW lists this unit for meth decontamination foam products such as Neutrasol, Apple Environmental, Crystal Clean and Decon7. Compatibility depends on the product and the pump seal material, so confirm each chemical against its SDS before use.
Need the operation manual? Ask us and we will send the current FOAMit copy.
Frequently Asked Questions
What air compressor do I need?
One that delivers 7 cfm at 50 psi.
How long does a tank last?
Approximately 1.5 hours.
2 nozzles or 3?
The 3-nozzle unit adds a telescoping mast for higher and larger spaces.
Which pump seals does it have?
Santoprene as standard. Viton and Kalrez are FOAMit options — check your chemical's SDS.
Related Products
- DEMA FOAMit 10 Inch Poly Wand with Spray Tip for 25 Gallon Foamer
- DEMA FOAMit Pump-Up Foamer, 5 Litre
- DEMA FOAMit Pump-Up Foamer, 10 Litre
- DEMA FOAMit Portable Fogger, 38 Litre (10 Gallon), 2 Nozzles
- DEMA FOAMit Portable Air-Powered Foamer, 38 Litre (10 Gallon)
- DEMA FOAMit Portable Air-Powered Foamer, 95 Litre (25 Gallon)
What We See in the Field
[Technician's Note — replace before publishing: two to four sentences of first-hand CCW field experience relevant to this product. A pattern you see, a mistake customers make, or something learned from servicing or selling it. Not spec repetition, not a sales pitch, not invented.]
Tell us the chemical you plan to apply and the size of the area, and we will help you choose the right unit and seal material.
