Tramex CME5 – Concrete Moisture Encounter
The Tramex Concrete Moisture Encounter is a non-destructive meter for measuring moisture content instantly in concrete slabs per ASTM F2659, and giving comparative or equivalent readings in other cementitious floor screeds. Easy to use, giving precise and repeatable results, it allows multiple tests over a large area in the shortest possible time.
Features
- Non-destructive in operation – no need to probe, drill or mechanically damage the surface

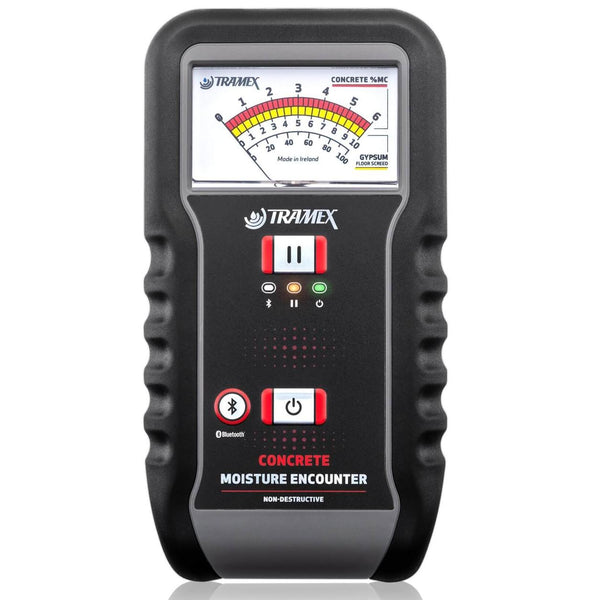

- Clear, easy-to-read analogue dial
- Instant and precise readings to a depth of approximately 20 mm (3/4 inch) into the slab

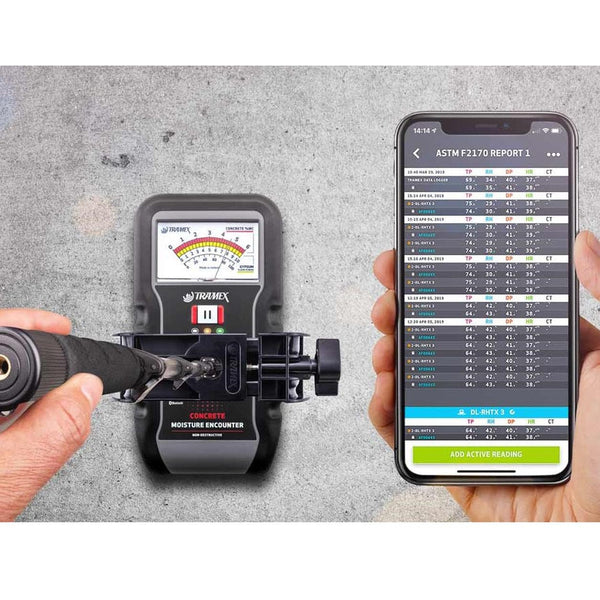

- Bluetooth connection to the iOS and Android Tramex Meters app
- Hold function freezes the reading when inspecting areas where the meter face is not visible
- Reproducible and reliable results
- Spring-loaded contact pins compensate for uneven concrete and boost signal penetration
- Rugged, ergonomically designed enclosure
Where the CME5 fits
Industries: flooring inspection, concrete coatings, water damage restoration.
Materials: concrete slabs and screeds, anhydrite/gypsum screeds and boards.
The CME5 is a survey instrument. It finds the wet areas of a slab quickly and non-destructively, which is what tells you where in-situ RH probes need to go. It is not itself an ASTM F2170 or AS 1884-2012 relative humidity test, and no impedance meter is.
Technical specifications
Figures below are from the current Tramex data sheet (July 2020 revision).
| Weight | 344 g |
| Size | 160 mm x 85 mm x 38 mm |
| Construction | ABS body |
| Power | 2 x AA LR6 alkaline (included) |
| Display | Analogue moving coil dial, with Bluetooth and hold buttons |
| Depth of penetration | Approximately 20 mm (3/4 inch) |
Measuring ranges
| Moisture content of concrete | 0 to 6% (moisture by weight) |
| Gypsum floor screed, comparative | 0 to 10 |
| Reference scale, comparative | 0 to 100 |
Documents
Frequently asked questions
CME5 or CMEX5?
The CME5 reads concrete and cementitious screeds on an analogue dial and pairs to the app over Bluetooth. The CMEX5 is the digital version and adds a built-in ambient RH sensor plus ports for in-situ Hygro-i2 RH probes and pin probes, so one instrument covers the non-destructive survey, the ASTM F2170 RH test and timber. If your reports need RH numbers, the CMEX5 saves buying a second instrument.
Can readings be taken through a coating or adhesive?
They can, but Tramex is explicit that readings taken on slabs through paint, coatings, adhesives or other surface materials are qualitative or comparative, not quantitative. Quantitative %MC requires a clean, bare, dust-free slab.
Does the CME5 need calibration?
The measurement is not user-calibrated. A calibration check box is available for verifying the meter reads correctly, which is worth doing periodically where readings support a report or a warranty claim.
Why does it have spring-loaded pins if it is non-destructive?
They are contact pads, not penetrating pins. They keep the electrodes in contact on an uneven slab surface so the signal couples properly. Nothing penetrates the concrete.
What warranty applies?
All Tramex products carry a full satisfaction guarantee including a one year warranty against defects in parts and workmanship. Proof of purchase is necessary.
