HydraMaster TITAN 625 (In the Box)

Regular price $0.00

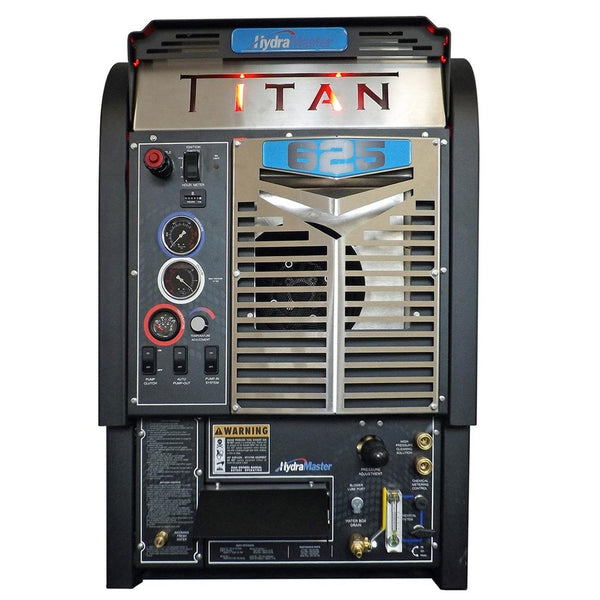

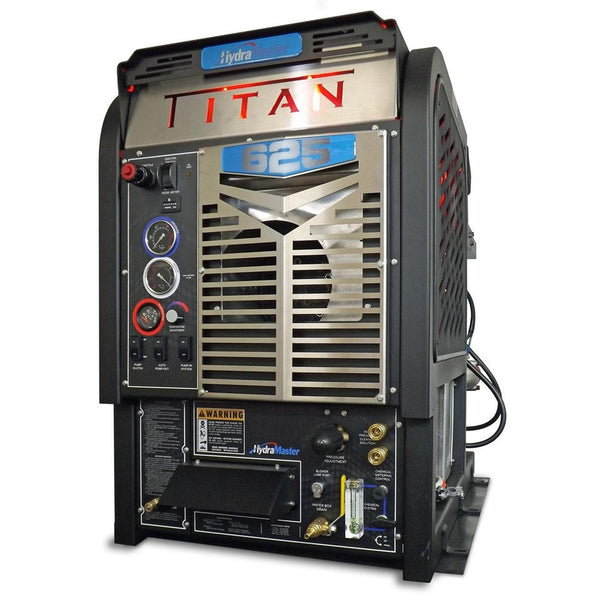

HydraMaster TITAN 625 Truckmount... Meet Big Brother

Performance that makes you want to get up and go to work every morning!

Streamlined Design and Function increase reliability and make your workday simpler.

No matter what the cleaning or restoration challenge – The TITAN 625 delivers – Dual Wand Carpet Cleaning, Long hose pulls residential and commercial carpet cleaning, Pressure washing with full waste recovery capabilities, Restorative Concrete, Stone, and tile floor cleaning; or Water extraction.

Description

  • Massive 38HP KOHLER Command Pro EFI Air-Cooled Engine – EFI Fuel Delivery, EPA approved delivers maximum power and cost-efficient performance
  • GD408 Rotary TRI-LOBE Vacuum Blower produces 500+ CFM of airflow for faster drying, longer hose runs
  • Tri-3VX Belt Drive Power Delivery System allows for reduced space usage, gearing up power through pulleys and adsorbs mechanical vibration and takes up misalignments. Removable belts make for easy access to maintenance
  • Proven MAX-TEMP Heat Exchanger fin and tube heat exchanger with heat-boost for faster warm-up open design maintaining cleaning solution temperature up to 245°F at intermittent carpet cleaning solution flow rate and 180°F at a continuous high-pressure solution flow rate
  • Streamlined design and function for clean and simple design – belt-driven, no diverter valve, and minimized wiring
  • Dual wand plumbed to double your productivity, massive vacuum performance to extend your cleaning reach, and maximum productivity every day
  • And that same tough-as-nails TITAN quality with more intuitive and easier-to-use panel directions and graphics for easier operation and maintenance
  • Best of all the TITAN 625 is backed by The HydraMaster Hassle-Free Ownership Experience:
    • Comprehensive “bumper to bumper” 2-year warranty across the entire machine – no “limited” on this warranty.
    • Local distributor for complete warranty and service support
    • Faster better and easier warranty support
    • 24/7/365 Online and app-based operations and troubleshooting support
    • The best technical support team in the industry is available for you to talk to

Specifications

KOHLER Command Pro EFI Air-Cooled Engine

  • Electronic Fuel Injection
  • A fully integrated oil cooler extends engine life
  • Robust torque output for most demanding applications
  • Hydraulic lifters mean zero maintenance on the valve train
  • Advanced sensor technology allows the engine to optimize performance by automatically adapting to operating conditions
  • Fuel consumption –1.6 gph
  • Fully sealed inlet duct

GD 408 Rotary Tri-Lobe Blower

  • Quieter operation 3 lobe impeller allows through input while creating lower noise, vibration, and pulsation levels
  • Heavy-duty industrial design for reduced downtime
  • Dual splash lubrication for longer life and reducing service intervals
  • High-strength timing gears for longer service life
  • Piston ring and shaft lip seals prevent oil leakage
  • Large cylinder fins for greater heat dissipation
  • Cast aluminum inlet adapters on blower and waste tank to reduce corrosion
  • Speeds up to 3300 RPM
  • Up to 510 CFM

General HTX-1813 High-Pressure Solution Pump

  • 4.0 GPM volume
  • Triplex plunger pump
  • Features patented “high tech” packings
  • Patented inlet/outlet valve cage
  • Nickel-plated inlet/outlet valve plugs
  • Nickel-plated forged brass manifold with an exclusive lifetime warranty
  • Specially designed to handle rigorous duty cycles, high temperatures, and chemicals
  • Chemical System – last-step chemical injection and meter controlled

MAX-TEMP Thermal Capture and Heat Exchange System

  • Tube and Fin heat exchanger with heat-boost for faster warm-up
  • Attains and maintains cleaning solution temperature up to 245°F at intermittent carpet cleaning solution flow rate and 180°F at continuous high-pressure solution flow rate
  • Easy to access and remove core for easy cleaning and maintenance

Machine Specifications

  • Dimensions: 26”W x 45”D x 39”H
  • Console weight: 850 lbs



IN THE BOX Package includes:

Machine Power Console, Vacuum Recovery Tank, 2 x 15 Meters Premium 2 Inch Vacuum Hose in cuffs and joiners, 2 x 15 Meters Premium High-Pressure Solution Hose Inc. quick connects, 3 Meters 1.5 Inch Wand Whip Hose, 3 Meters 1.5 Inch Waste Dump Hose, 20 Litre Chemical Jug, Battery Box (battery not included), 15 Meters Water Supply Hose, Fresh water hook up, Installation and bolt down kit, Installation instructions, User manual, Import freight by sea, Transit insurance, Customs clearance, Duty, Handling charges and GST.

Basic Truckmount Package includes:

  • IN THE BOX Package PLUS
  • Evolution 1.5 inches 2 jet Cleaning Wand
  • Supply & installation of Space saver hose reel
  • Stainless bolt down upgrade kit
  • Teflon strips installed under console, tank & reel
  • Bolt down of console, tank & reel
  • Fuel line splice & through floor hookup
  • Supply & install heavy-duty 12volt battery
  • Systems and safety check
  • Operator training

Deluxe Truckmount Package includes:

IN THE BOX Package PLUS

  • Supply & installation of Duraflow external HD pump-out system
  • Supply & installation of Space saver hose reel
  • Triple hose reel upgrade
  • Supply and installation of three-tier van shelf
  • Supply of additional 15 meters vacuum and solution hose set inc fittings and connectors
  • Supply Hydro-Force sprayer
  • Supply and install marine ply floor and marine carpet
  • Stainless bolt down upgrade kit
  • Teflon strips installed under console, tank & accessories
  • Bolt down of console, tank & accessories
  • Fuel line splice & through floor hookup
  • Supply & install heavy-duty 12volt battery
  • Systems and safety check
  • Operator training
