Finish Jobs Faster with Hydro-Force™ Injection Sprayers

For those that demand the best, the Hydro-Force Injection Sprayer Pro has all the great features you've come to expect along with a new 5 qt. container that makes the best sprayer in the industry even better! You can cut your spray time in half and quickly apply carpet pre-sprays, deodorizers, tile and grout cleaning solutions, sanitisers, protectors and more.

Benefits:

A new, patent-pending container design makes the Hydro-Force sprayer the most convenient sprayer on the market
The large side-fill port allows you to refill without removing the injector assembly
Wand holder to keep your wand off your customer's floor
Recessed handle
Operating pressure range of 100-1,000 PSI
Eliminates annoying mixing required by pump-up sprayers
High-quality quick connects allow your gun to swivel and permit quick removal

Specifications:

5 qt. transparent container w/qt. measurement markings
Quick connects for swiveling and quick removal
Spray gun rated at 2600 PSI and 7 GPM
7 dilution ratios using metering tip kit NA0816A (sold separately)
Chemically resistant seals
18" stainless steel wand
Rotomolded container
Tethered cap

General Function:

The Hydro-Force Injection Sprayer is based upon an injection system that consists of a specially designed valve that injects a concentrated chemical into the high-pressure water flow from the machine. Hydro-Force is designed for use with an incoming water pressure of 400 PSI. The water flow is automatically reduced as it passes through the injector valve, thus reducing the pressure by approximately 64%. To obtain the actual working pressure of your Hydro-Force Injection Sprayer, multiply your incoming pressure by 36%. The Hydro-Force Injection Sprayer is factory set to inject chemicals at a 1 to 8 ratio. Other chemicals may be used but should be prepared for a 1 to 8 dilution. The Hydro-Force pressure can be increased by putting a smaller jet at the end of the wand. This will, however, decrease the injection rate of your chemical. Your injection ratio may also change depending on your chemical concentrate's viscosity (thickness). The 1 to 8 ratio is based on chemicals with a similar viscosity to water. The injection ratio can also be slightly affected by your main flow water temperature. This is generally not enough of a change to appreciably change the effectiveness of your system. However, we recommend the water temperature be kept below 200 degrees Fahrenheit, as higher temperatures can cause problems with the injection.

Pre-Spray and Traffic Lane Applications:

Hydro-Force Injection Sprayer eliminates the hassles of measuring and mixing. We recommend you keep an extra 5-quart container or two on your truck to ensure you never run out and to facilitate quick changes to your chemical containers. Remember that Hydro-Force Injection Sprayers automatically mix at a 1 to 8 ratio. If your 5-quart container is full then that is the same as holding an 11-gallon pump sprayer of regular, ready-to-use pre-spray. We have found that Hydro-Force Injection Sprayers offer better penetration and overall coverage than most other sprayers. It is therefore possible to pre-spray your jobs up to 45 minutes before you reach that area to be cleaned. An effective way to use the Hydro-Force for pre-conditioning or small to medium jobs is to start at the door coming into the house, spraying all the traffic areas, and working your way to the farthest point back in your job. You have then completed your pre-conditioning in just seconds and are prepared to hook up your wand and start cleaning your way out. Keep in that your Hydro-Force is spraying 3 to 4 times the amount of product your normal pump sprayer is putting out. This means you must move quickly to avoid over-applying. Protector should be applied in even, slightly overlapping strokes.

Patent Number: 6182911B1

*** NOTE - THE MODEL WE SUPPLY HAS BEEN UPDATED FROM THE MODEL ON THE VIDEO. PLEASE SEE THE PICTURES ATTACHED BEFORE ORDERING. ***

Additional Item Resources

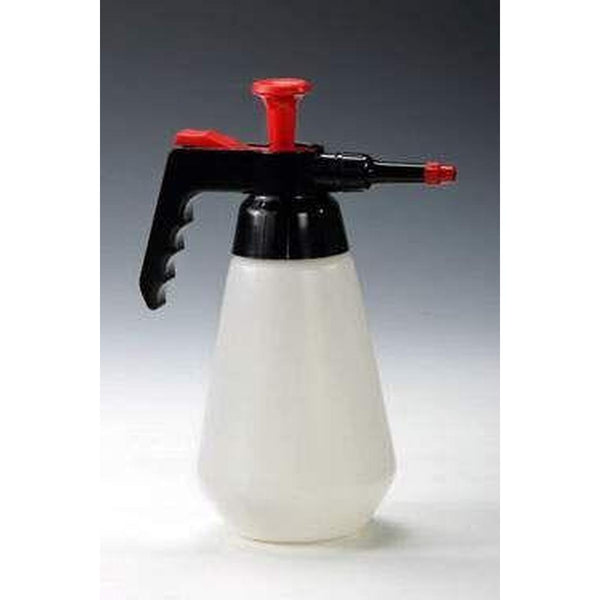

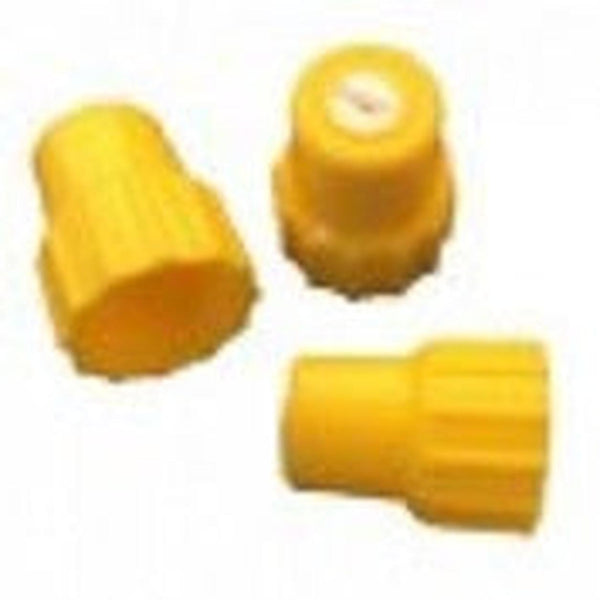

Fan Pattern Jet for Volkenex Viton Hand Sprayer (3 Pack)
