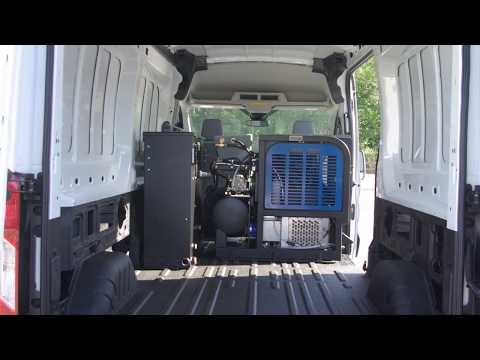

The HydraMaster TITAN 425 is a 23 HP air-cooled slide-in truckmount built around consistent heat delivery and a compact console. It runs at 1,000 psi, which covers carpet, upholstery and hard surface work.
Why professionals choose it
- “Tough as Nails” TITAN quality with a sleek new design
- More intuitive and easier-to-use panel directions and graphics make it easier to train new technicians and easier to maintain
- Enhanced appearance makes an impression on your professionalism to your cleaning or restoration customer
- Truckmounts that match your perseverance at delivering optimum performance to your customers
- Legendary performance and reliability from the innovation leader since 1971
Key features
- More Power – 23 HP Air-Cooled Engine – Briggs & Stratton® Vanguard™ Air Cooled Engine.
- Quieter Performance – Opti-Air® Flow System – Reduces noise resulting in notably quieter in operation.
- Patented Heat Control System – ADC Control Diverter valve manages heat for more consistent temperature delivery and far less water dumping.
- Compact Footprint – Maximises the van space more efficiently creating greater cubic feet for your gear.
- Simpler Maintenance – “Arms-length” design and removable panels allow easy access to crucial components and serviceable parts, including the heat exchanger.
- Stronger Vacuum – Helical gear splash lube tri-lobe blower produces 350+ CFM resulting in faster drying carpet and floors.
Ideal applications
Specifications
| Engine | 23 HP Briggs & Stratton, air cooled, 3,000 rpm |
| Fuel consumption | 4.2 L/h (1.1 gph) |
| Blower | Tuthill 4005, 3,000 rpm |
| Solution pump | General plunger, 15.1 L/min (4.0 gpm), electric clutch |
| Operating pressure | 1,000 psi |
| Drive | Direct drive, Hayes 40-series coupler |
| Heating | Finned tube heat exchanger with Automated Diverter Control |
| Maximum solution temperature | 116 °C (240 °F) — from HydraMaster’s product listing; not stated in the operator manual |
| Recovery tank | 70 gallon MaxAir aluminium, powder coated, stainless steel filter and basket, 927 × 267 × 787 mm, 45 kg |
Source: TITAN 425 operator manual, page 1-12.
What is in the box
Machine Power Console, Vacuum Recovery Tank, 2 x 15 Metres Premium 2 Inch Vacuum Hose in cuffs and joiners, 2 x 15 Metres Premium High-Pressure Solution Hose Inc. quick connects, 3 Metres 1.5 Inch Wand Whip Hose, 3 Metres 1.5 Inch Waste Dump Hose, 20 Litre Chemical Jug, Battery Box (battery not included), 15 Metres Water Supply Hose, Fresh water hook up, Installation and bolt down kit, Installation instructions, User manual, Import freight by sea, Transit insurance, Customs clearance, Duty, Handling charges and GST.
Comparing the HydraMaster truckmount range
These machines separate on engine, blower airflow, pump pressure and achievable solution temperature.
| Machine | Engine | Vacuum | Solution pump | Solution temp |
| Boxxer 318HP | 18 HP Vanguard, 3.8 L/h | 315 CFM, max 12 in. Hg | 1,500 psi, 13.2 L/min | to 100 °C |
| TITAN 375 | 23 HP Vanguard, 4.2 L/h | 350+ CFM Competitor 4005TL | to 2,000 psi | to 116 °C |
| TITAN 425 | 23 HP Briggs & Stratton, 4.2 L/h | 350+ CFM Tuthill 4005 | 1,000 psi, 15.1 L/min | Heat exchanger |
| TITAN 575HP | 32.5 HP Kubota liquid cooled, 6.4 L/h | 400+ CFM Dominator 4007 | 2,000 psi, 15 L/min | 110–129 °C |
| TMTG4000 | 23 HP Briggs & Stratton, 4.2 L/h | 350+ CFM Tuthill 4005, max 14 in. Hg | 1,000 psi, 13.2 L/min | Finned tube |
Where the decision sits. Airflow determines drying time and how far you can run hose. Pump pressure matters for hard surface work — around 1,000 psi is enough to clean tile and grout, so every machine here is capable of it, and higher pressure gives more margin on heavily soiled or textured surfaces. Solution temperature does the cleaning, and a liquid-cooled engine sustains it under continuous load where air-cooled tapers.
On size and weight. Published console dimensions and weights are not measured consistently between models and do not always match the machines as supplied here. Tell us your vehicle and we will confirm the actual figures before you order.
Engine, blower, pump and temperature figures are from HydraMaster’s published documentation. The IN THE BOX package on this page is what Carpet Cleaners Warehouse supplies and differs from HydraMaster’s standard equipment list — ours applies to your order.
What else you will need
- RX20 NEXTGEN rotary extractor — rotary extraction for commercial carpet, driven from the truckmount
- Automatic Wastewater Disposal System — pumps waste to an on-site sanitary connection instead of returning to dump
- Hose, wands and hard surface tools to suit the work — ask us to spec a kit against the machine
Warranty
Manufacturer warranty terms vary by component. This does not exclude, restrict or modify your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
Documents
- TITAN 425 product information sheet (PDF)
- TITAN 425 operator manual (PDF)
- TITAN 425 parts listing (PDF)
Frequently asked questions
Is the package the same as HydraMaster’s standard equipment list?
No. The IN THE BOX list on this page is what we supply in Australia, and it differs from the manufacturer’s standard equipment — hose lengths and tools in particular. Where the two disagree, ours applies. Ask us for written confirmation before ordering if it matters.
What vehicle do I need, and what does the machine weigh?
Ask us. Published dimensions and weights are not measured the same way between models — some are console only, some include the frame — and they do not always match the machines as supplied here. Tell us your vehicle and we will confirm the actual figures.
Who installs it?
We do, or an authorised representative by prior arrangement. Installation covers mounting, exhaust routing, plumbing and electrical, and it is not a job to hand to a general workshop.
There are warranty ramifications if it is installed incorrectly. A machine damaged by a poor installation is not a warranty claim, so arrange the install with us before the machine arrives rather than after.
Does higher pressure mean better cleaning?
Not on carpet. Carpet cleaning happens at relatively low pressure with heat and dwell doing the work. On hard surface, around 1,000 psi is enough to clean tile and grout — higher pressure gives more margin on heavily soiled or textured surfaces and lets you work faster, but it is not what makes the job possible.
Why does airflow matter more than it looks?
CFM at the machine sets recovery at the wand, and recovery sets drying time. It also determines how far you can run hose before performance falls away, which on multi-storey or long-run commercial work decides whether the job is practical.
What warranty applies?
Manufacturer warranty terms vary by component — the 575HP Kubota engine carries a 3 year manufacturer warranty, for example. This does not exclude, restrict or modify your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
